FEATURE

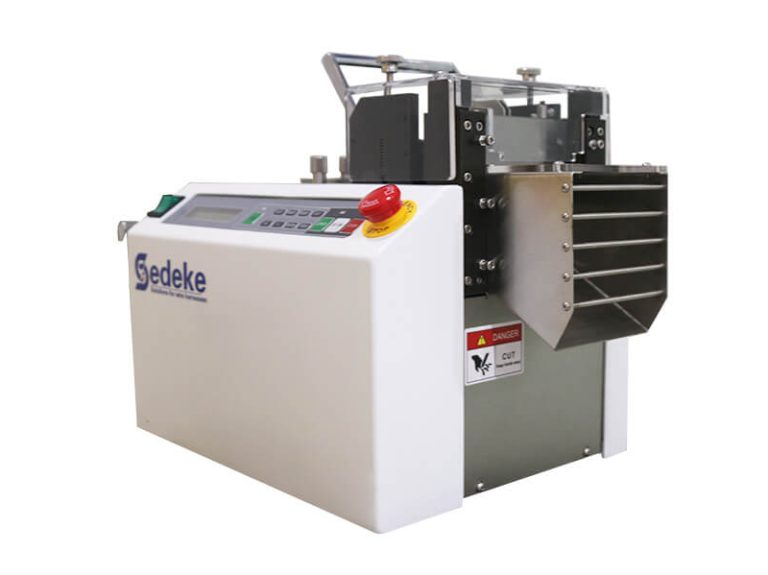

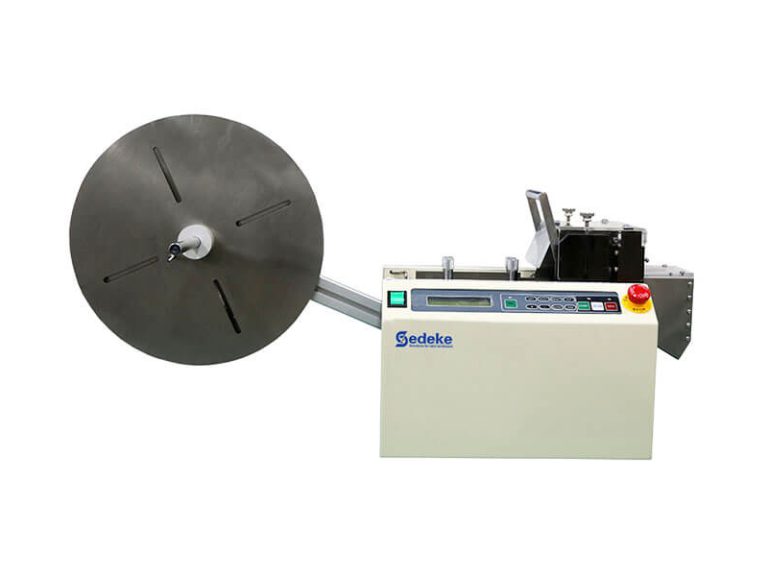

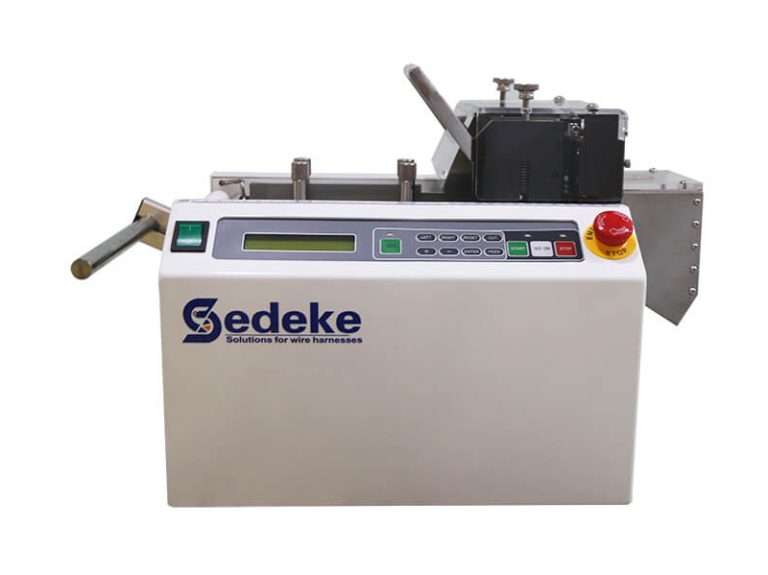

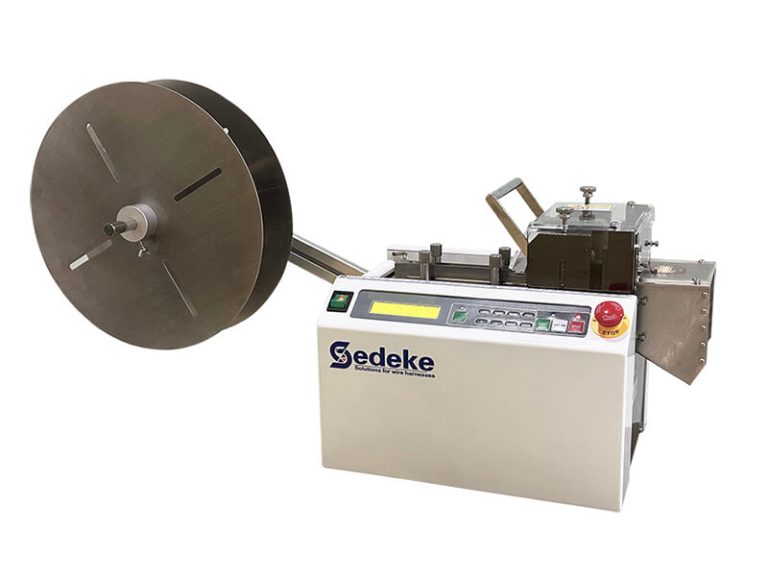

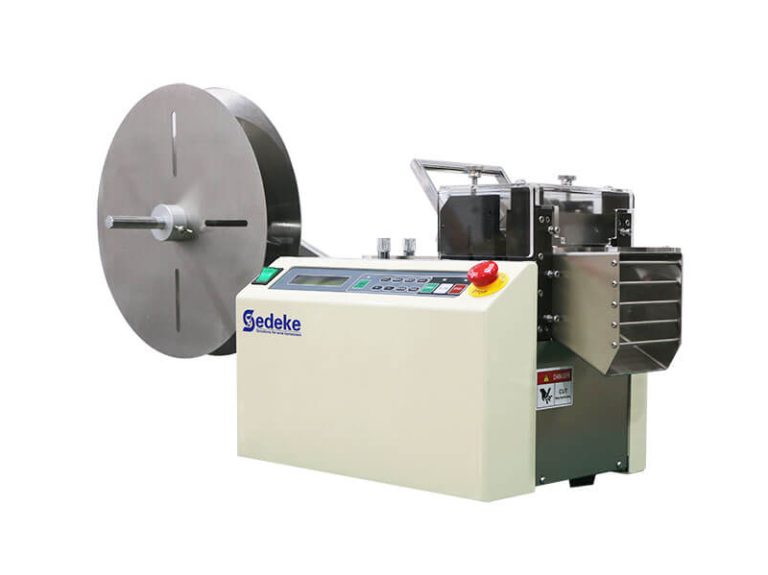

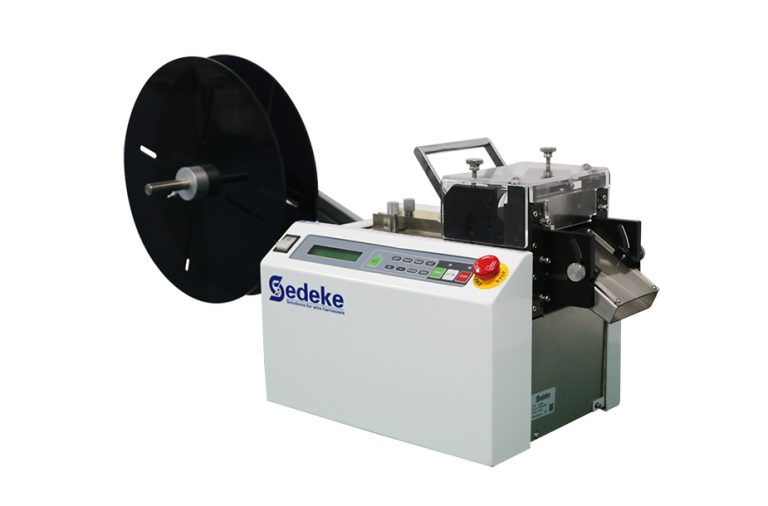

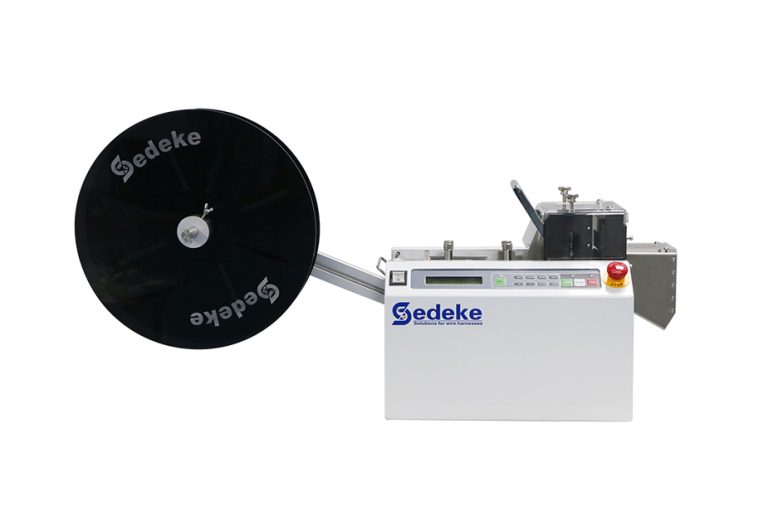

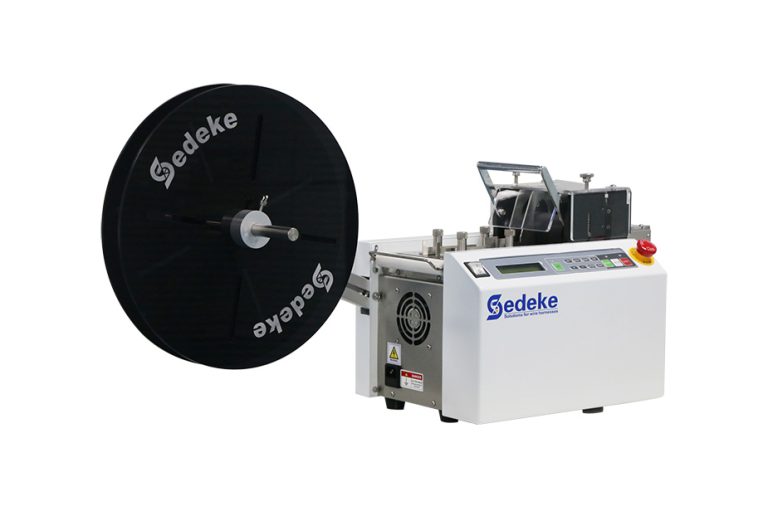

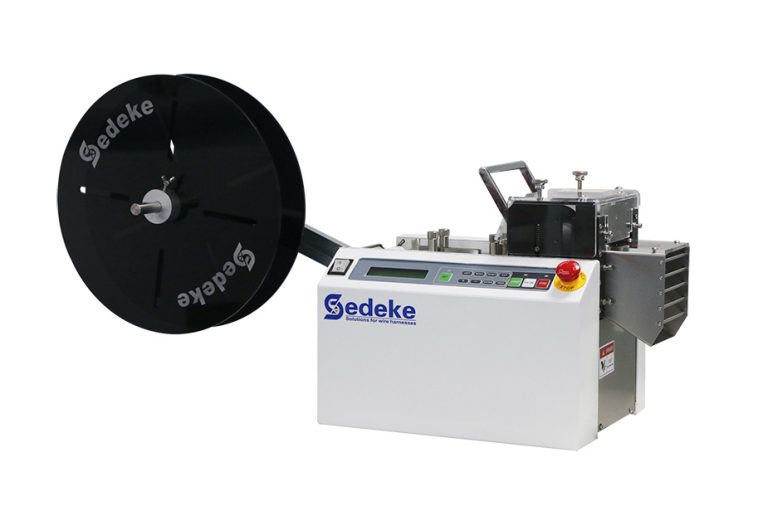

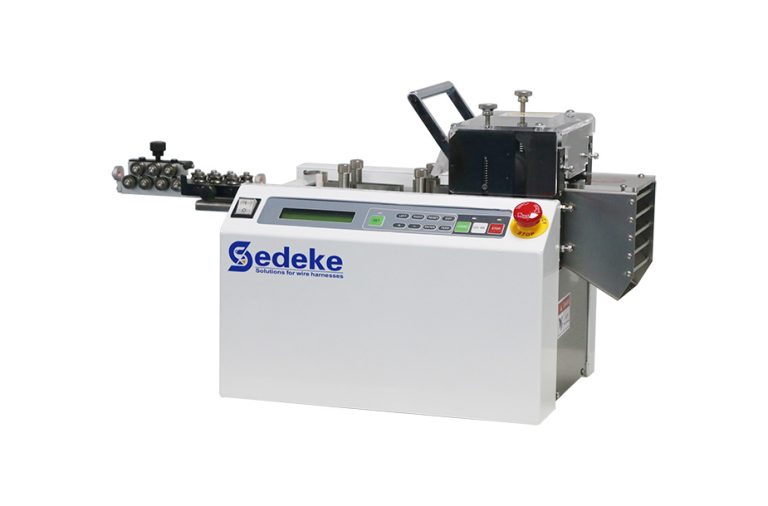

EC-6100 is a fully automatic heat shrink tube cutting machine developed for wire harness manufacturing, cable assembly, and flexible tubing processing. It is designed to deliver clean, square cuts on heat shrinkable tubing, silicone tubes, braided sleeves, and other flexible materials without deformation or burr.

Key Features:

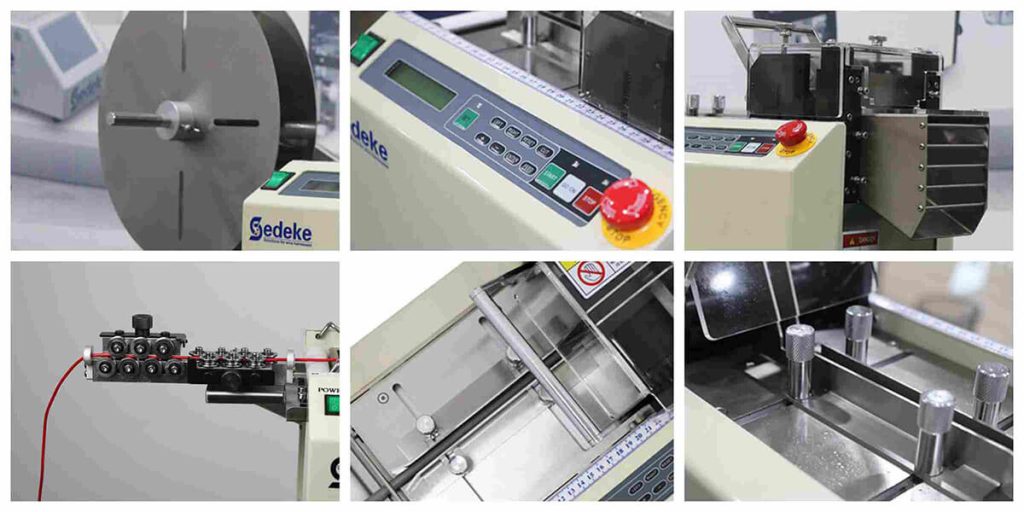

Precise cross-cut blade system ensures clean and square cuts even on very thin heat shrink tubing (wall thickness <0.5mm), eliminating material waste in wire harness production
Programmable cutting length: Set cutting length from 1mm to 999mm via menu-driven interface; no tools required for changeover between materials
High throughput: Cuts up to 100 pieces per minute at 100mm length, ideal for mid-to-high volume wire harness production lines

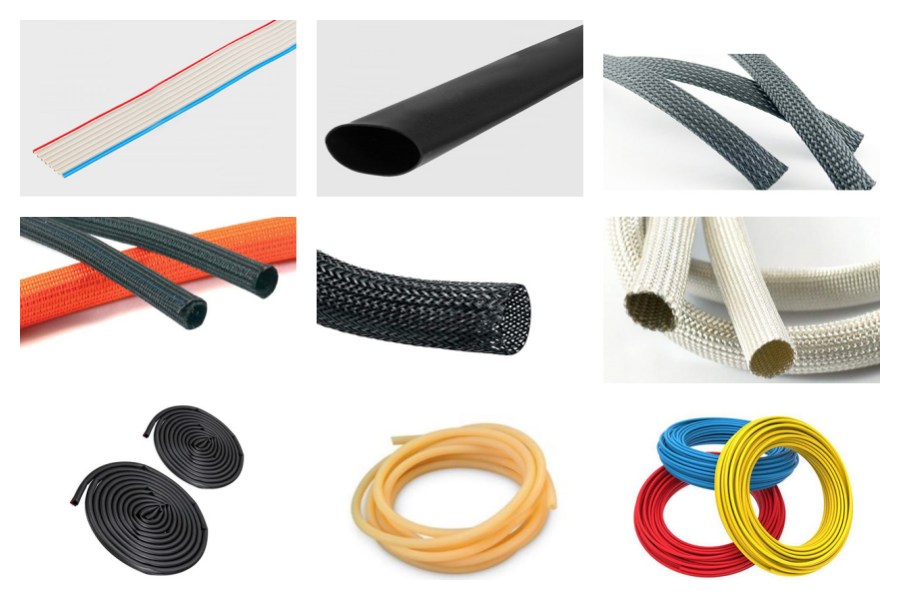

Wide material compatibility: Applicable for heat shrink tube (PVC, PE, PVDF), silicone tube, rubber tube, braided wire sleeve, vinyl film, paper tube, tin/copper plate strip, and flexible hose
Compact footprint (910×270×470mm) fits into existing wire harness production layouts without dedicated floor space
Single-phase 220VAC power supply, low 200W power consumption, compatible with standard industrial power infrastructure

Typical Applications in Wire Harness Production:

Pre-cutting heat shrink tubing before insertion onto wire ends or terminal joints
Batch cutting of insulation sleeves for automotive wiring harness assembly
Cutting silicone tube segments for high-temperature wire harness in EV and industrial applications
Processing braided sleeving for cable shielding and protection

PARAMETER

Max. Cutting Width	100 mm
Max. Cutting Length	1mm-99999mm
Speed	L=100mm, 100pcs/Min
Power Supply	220 VAC , 50/60 Hz
Power Consumption (Watt)	200W
Weight (Net/Gross)	29kg
Dimensions (W x D x H)	910270470mm
Cutting Material	Shrink tube, Hose, Rubber, Tin/Copper plate, wire, Braided wire, Paper, Silicon tube, Film, Vinyl, etc.

APPLICATION

The EC-6100 automatic heat shrink tube cutting machine is widely used across the following wire harness and cable processing industries:

Automotive Wire Harness Manufacturing
Pre-cut heat shrink tubing is a critical step in automotive wiring harness assembly. The EC-6100 delivers consistent cut lengths at high speed, compatible with PVC and PE heat shrink tube commonly used in automotive connector sealing and wire end protection.

New Energy Vehicle (EV) Cable Processing
EV high-voltage cable assemblies require silicone and PVDF heat shrink tube due to elevated temperature requirements. The EC-6100 handles these materials cleanly without blade contamination or edge deformation.

Consumer Electronics & Appliance Wire Harness
For household appliance and electronics wiring harness production, the EC-6100 processes small-diameter shrink tubing and insulation sleeves with ±0.5mm cut accuracy, reducing scrap rates on high-mix production lines.

Industrial Cable Assembly
Suitable for cutting braided sleeving, rubber hose, and flexible tubing used in industrial machinery cable protection applications.
