Automatic Cutting Machine
Sedeke automatic cutting machines make it easy to program cut-to-length processing for wire, cable, heat-shrink tubing, silicone tubes, rubber hose, braided sleeving, corrugated tubes, film, and other continuous materials.
The range includes high-speed tube cutters, cable cutting machines, hot-knife cutting systems, rotary cutting machines, as well as versions with automatic feeding. Select the right machine based on the material, maximum width or diameter, cutting length, cutting method, and the production speed required.
From single-wire cutting to multi-gauge cable and corrugated tube processing, Sedeke delivers stable and repeatable automatic wire cutting machine solutions built for global B2B production lines
Hot Sale Model Spacs Compare
| Model | Type | Max. Cutting Width / O.D. | Max. Cutting Length | Speed | Power | Weight | Dimensions (WDH) | Display | Cutting Material / Processing Type |
|---|---|---|---|---|---|---|---|---|---|
| EC-6100 | Automatic Cutting Machine | 100mm | 100mm | 100pcs/Min (L=100mm) | 200W | 29kg | 910270470mm | - | Shrink tube, Hose, Rubber, Tin/Copper plate, Wire, etc. |
| EC-6100H | Automatic Cutting Machine | 100mm | 1-99999mm | 100pcs/Min (L=100mm) | 700W | 30kg | 910270470mm | - | Shrink tube, Hose, Rubber, Tin/Copper plate, Wire, Braided sleeve, etc. |
| EC-6800 | Automatic Cutting Machine | 100mm | 1-99999mm | 100pcs/Min (L=100mm) | 350W | 32kg | 510350380mm | 5 inch touch screen | Shrink tube, Hose, Rubber, Tin/Copper plate, Wires, Braided wire, etc. |

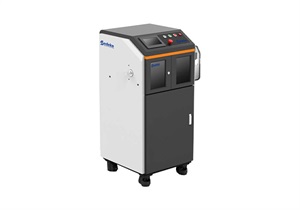

| EC-821 | Automatic Rotary Corrugated Tube Cutting Machine | 7-42mm O.D. | 5-9999.9mm | - | - | - | - | - | Corrugated tubes |
| EC-830 | Automatic Tube Cutting Machine | 4-35mm O.D. | 1-999999.9mm | 6000 PCS/hour (L=100mm/Φ10mm) | - | 85kg | 680480550mm | 7 inch touch screen | Corrugated tubes / PVC tubes / Heat shrinkable tubing etc. |

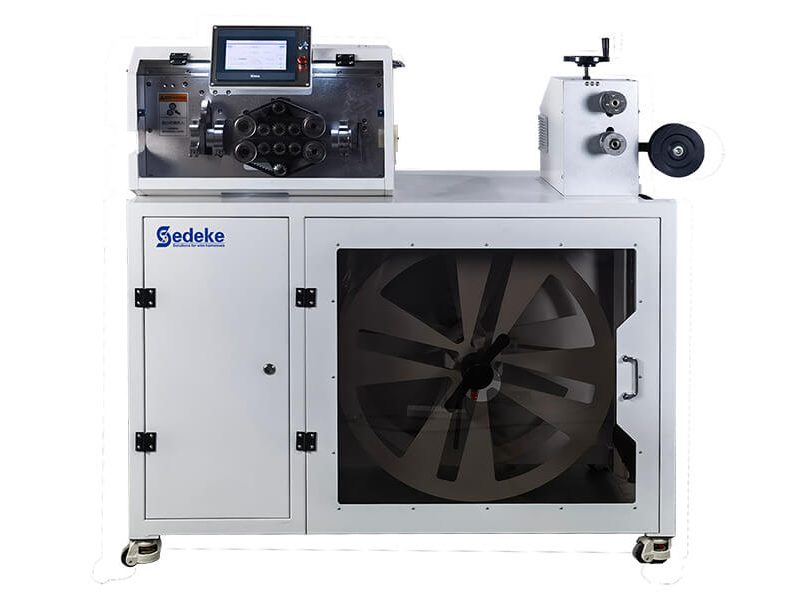

| EC-830F | Automatic Tube Cutting Machine | 4-35mm O.D. | 1-999999.9mm | 6000 PCS/hour (L=100mm/Φ10mm) | - | 260kg | 15506501400mm | 7 inch touch screen | Corrugated tubes / PVC tubes / Heat shrinkable tubing etc. |
| EC-823 | Automatic Tube Cutting Machine | 4-35mm O.D. | 1-999999.9mm | 100000 PCS/hour | - | 85kg | 680605520mm | 7 inch touch screen | Corrugated tubes / PVC tubes / Heat shrinkable tubing etc. |

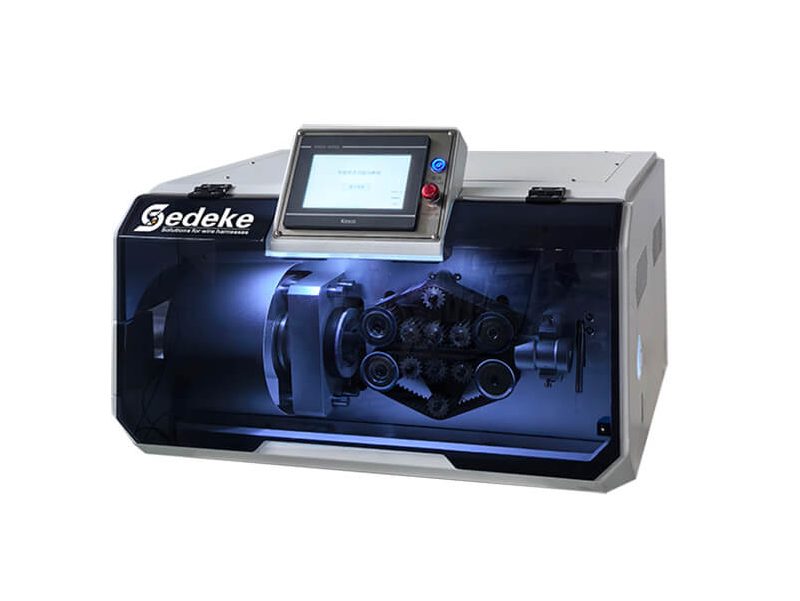

| EC-850X | Automatic Rotary Tube Cutting Machine | Φ10-Φ50mm | 1-999999.9mm | 20-100PCS/min | 1050W | 90kg | 815610500mm | 7 inch touch screen | Honeycomb tubes, paper tubes, PVC hard tubes |

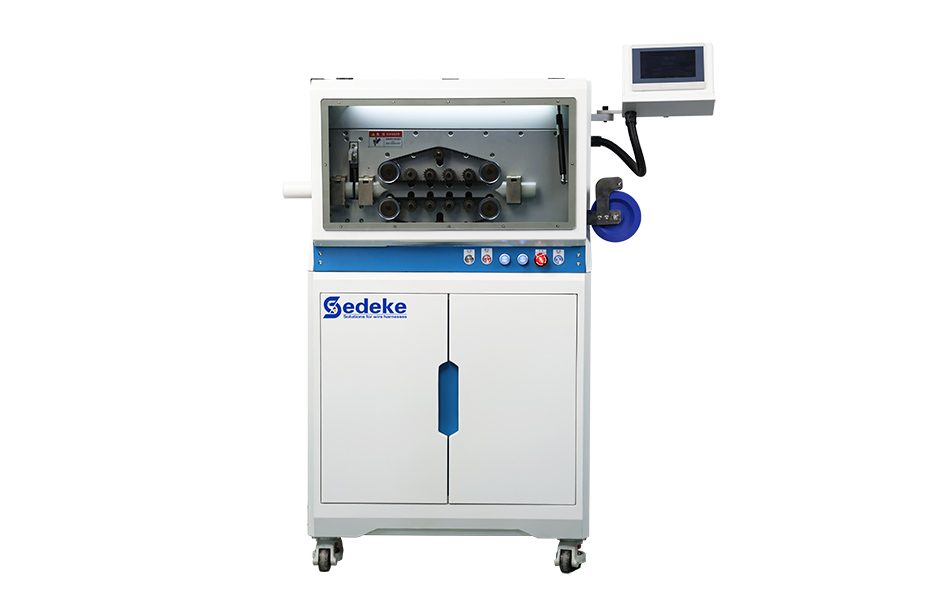

| EC-870 | High-power Automatic Tube Cutting Machine | Φ4-50mm | 1-999999.99mm | 4000 PCS/H (L=100mm/Φ10mm) | 2000W | 145kg | 9506701300mm | 7 inch touch screen | Rubber pipes / PVC pipes |
Built for Real Industrial Use Cases

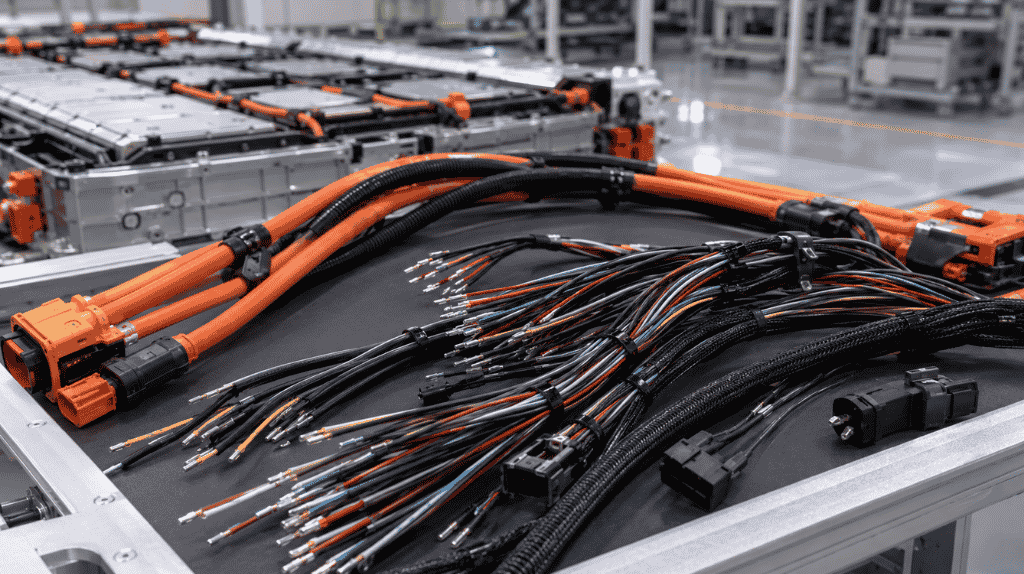

Automotive Wire Harnesses: High-voltage wire harness manufacturing for both traditional and new energy vehicles.
Home Appliance Wire Harnesses: Electrical connection harnesses inside various types of home appliances.
Rail Transit and Aerospace: Specialized wire harness manufacturing with extremely high requirements for precision and safety.
Power, Telecommunications, and Industrial Equipment: Wiring manufacturing for electrical equipment, electronic appliances, and industrial automation; processing of coaxial cables and ultra-fine wires
Specialized in high-speed, high-precision cutting and trimming of various types of tubing
Corrugated Tubing and PVC Tubing: Fixed-length cutting of external protective sleeves for automotive wiring harnesses.
Heat-Shrink Tubing: Cutting of heat-shrink tubing segments for insulation and protection of wiring harness connectors.
Silicone Tubing and Rubber Tubing: Fixed-length processing of tubing for fluid transmission and sealing applications.
Cutting and Processing of Flat Metal Mesh

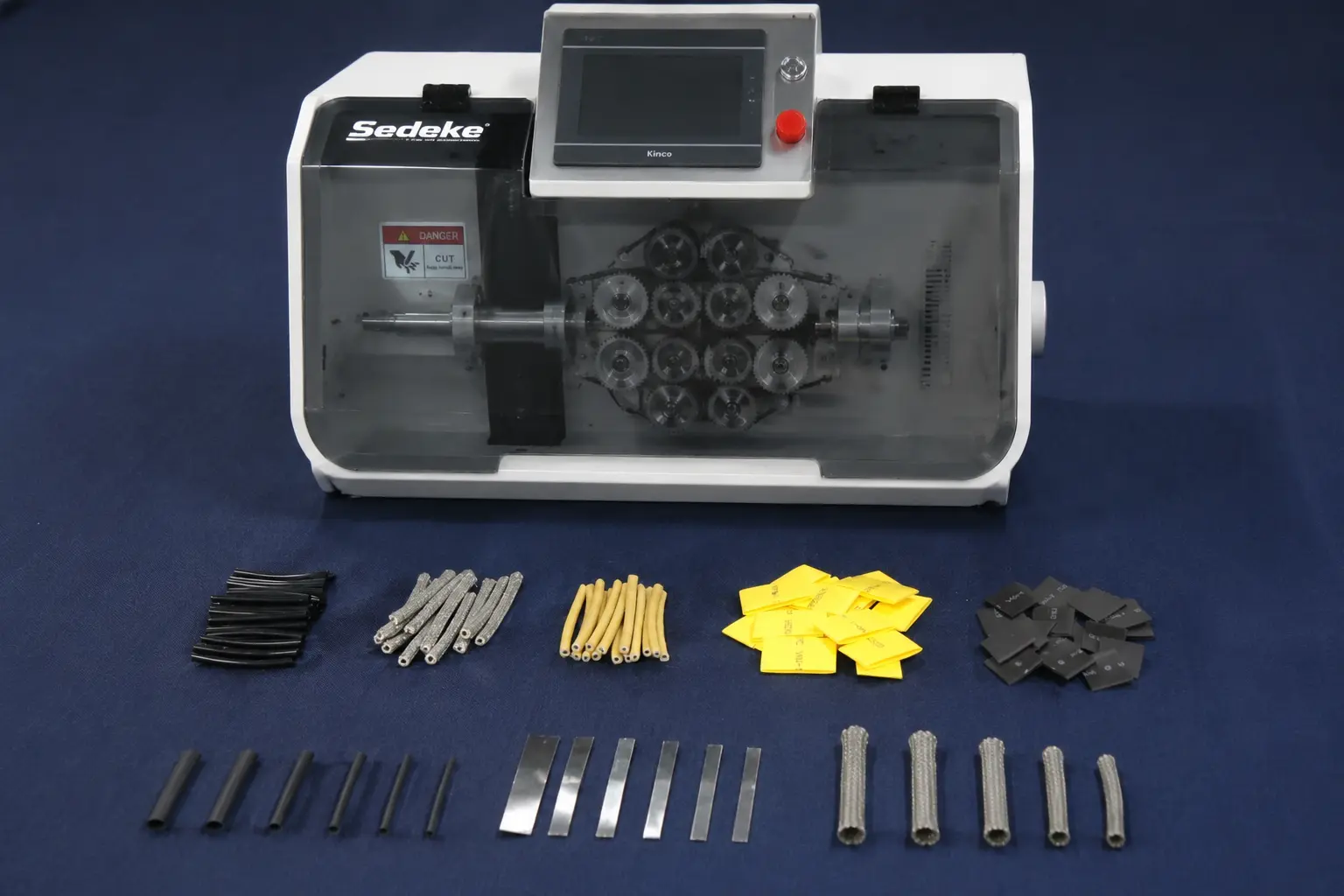

Films and braided wires: Cutting of insulating films for electronic components and multi-strand braided wires.
Copper foil/tin foil: Cutting of thin metal sheets such as battery tabs and shielding layers.
When selecting a wire cutting machine, the decision should not be based solely on the model name or maximum cutting range. What matters more is whether the equipment is suitable for the materials to be processed, the feeding conditions, the cutting length, the tolerance requirements, and the production process. Sedeke supports this selection process through material-based model matching, a variety of cutting methods, and sample review prior to final recommendations.
.
Different materials present different cutting challenges. Wires and cables may require consistent cutting lengths prior to crimping or assembly. Braided sleeving may require thermal cutting to minimize edge burrs. Corrugated tubing, PVC tubing, heat-shrink tubing, rubber tubing, and rigid tubing may require specialized feeding or rotary cutting. Sedeke’s product data covers cutting solutions for wires, cables, sleeving, tubing, and protective materials, allowing model selection to be based on actual applications rather than a generic model list.
Sedeke models offer a variety of process options, including conventional cutting, hot cutting, rotary cutting, slitting, belt feeding, roller drive, air blowing, and servo control systems. These options are particularly important when materials exhibit issues such as slippage, kickback, melting, sticking to the blade, or deformation after cutting. The goal is not to select the most complex machine, but to choose the appropriate cutting method based on the material’s characteristics.
For large-scale manufacturing, buyers usually need more than a basic cutting function. Take the EC-6800 as an example. This machine comes with a touchscreen interface and can be connected to different external devices, including pre-feeders, inkjet printers, laser printers, or computers. If your factory relies on PLC control, printing, marking, or mass production planning, you should review the details of each workflow carefully before choosing a machine.
On paper, materials may look alike, but in real production, cutting results can differ greatly. The final cutting quality is influenced by factors such as surface friction, wall thickness, hardness, weave structure, and roll tension. Before the equipment configuration is finalized, Sedeke performs a thorough assessment of material characteristics, cutting length, tolerance needs, production volume targets, and cut surface quality. For materials that are more difficult to process, it’s recommended to run sample cutting tests in advance.
Reduces labor costs: A single machine can replace multiple manual wire-cutting workers.
Reduces waste: High-precision fixed-length cutting minimizes length errors and reduces scrap.
Stable production capacity: Different shifts and operators can all maintain consistent product output.
Lowers total cost of ownership: Short maintenance cycles result in lower overall long-term costs.

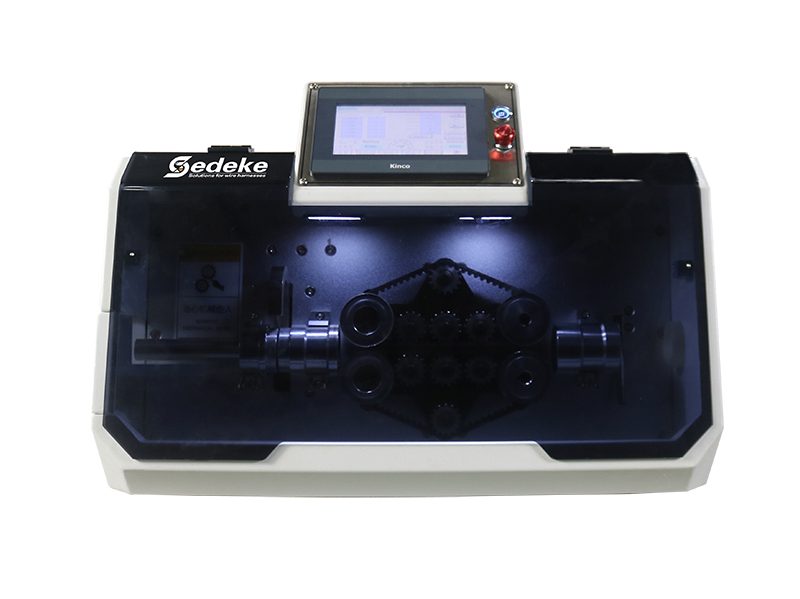

EC-830 corrugated tube cutting machine is applied to types of Multiple material tube/pipe cutting.
Seeing EC-822 High Speed Corrugated Tube / Tube Cutting Machine

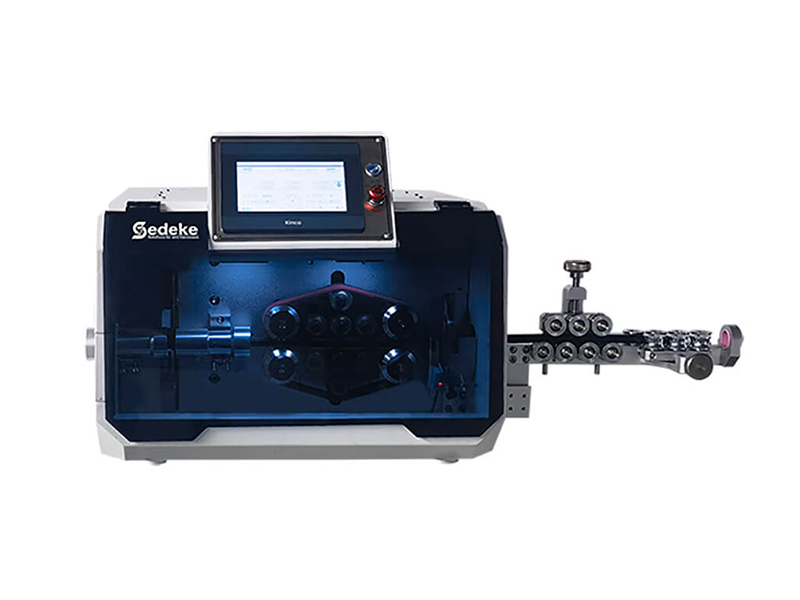

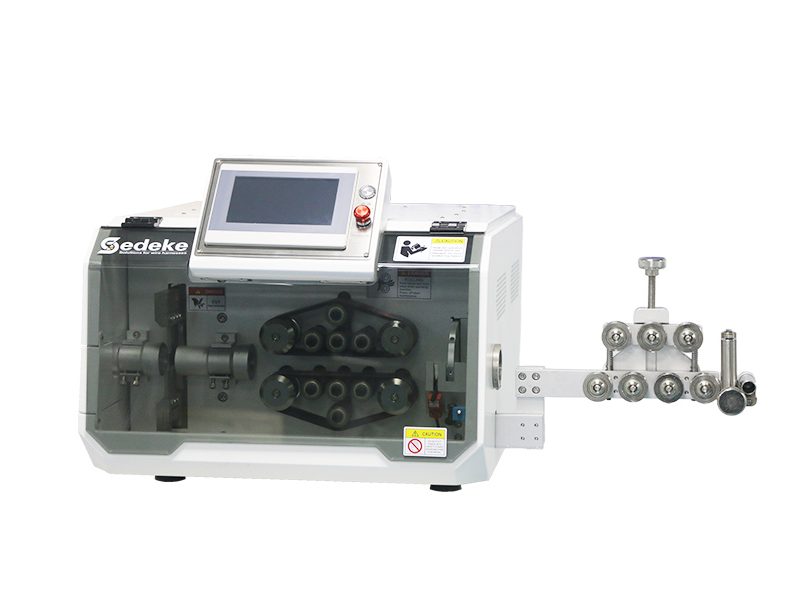

EC-810 machine is designed to automatically cut all kinds of material including wire, cable, round material such as tubing, flat ribbon and Glass Fiber Optic (GOF) cable.
A wire cutting machine is used to cut wire, cable, sleeving, tubing, or similar materials to a specific length. In production, it’s typically chosen when manual cutting is too slow, when you need more consistent results, or when repeatability from one batch to the next is difficult to achieve reliably.
Start by identifying the material. Then confirm the outside diameter (or width), the required cut length, your tolerance target, your daily output goal, the feeding conditions, and whether there are any special requirements for the cut surface. For Sedeke models, the best option depends on whether the job requires standard cutting, hot cutting, rotary cutting, slitting, tube cutting, or integration with other equipment such as a prefeeder, printer, PLC, or PC.
Standard cutting accuracy is typically ±(0.2 + 0.002 × L)mm, suitable for most wire harness and cable assembly applications.
For tube applications, you should also verify the material, outside diameter, wall thickness, and the level of cutting quality required. Sedeke’s local data links models such as EC-830, EC-830F, EC-823, EC-850X, EC-870, and EC-821 to applications including tube, corrugated tube, PVC tube, heat shrink tube, rubber pipe, and rigid tube. Even after narrowing it down this way, the final selection still needs to be confirmed through sample testing and review.
Have the material photos, samples, target cut length, tolerance target, output target, voltage requirements, and any notes about feeding or collection ready in advance. If the material has any special behavior—such as rebound, fraying, melting, sticking, or deformation—make sure to highlight it before starting any tests.
From getting the materials tested and the machines set up, to supporting operators and supplying spare parts, Sedeke helps you through every step of your cutting process. Our engineers can help verify machine settings, troubleshoot processing problems, and recommend the right blades, guide tubes, and feeding components.

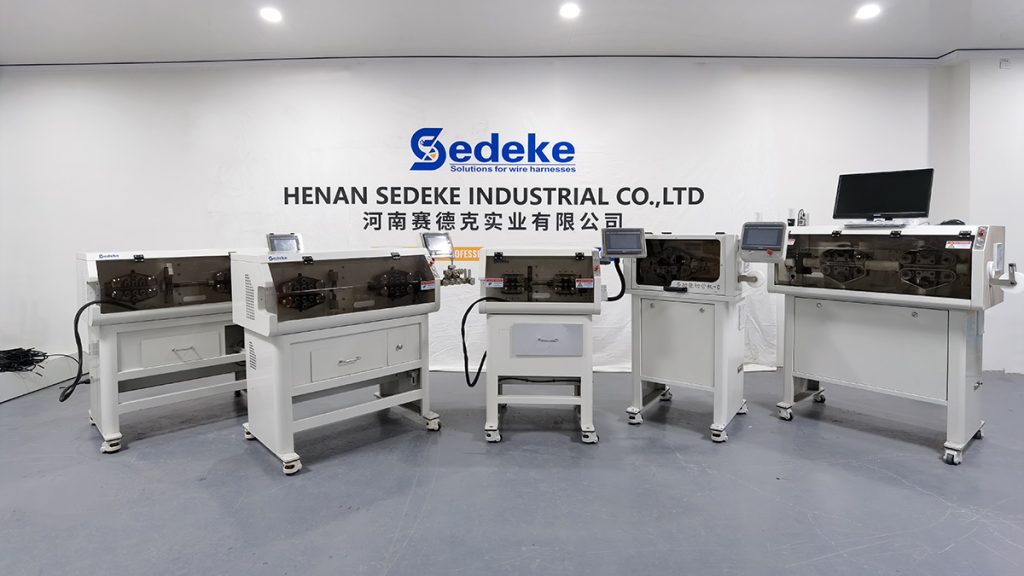

Sedeke which was founded in 2001, is a manufacturer of industrial automation system wiring harness processing and solutions with 25 years of industry experience. The company currently operates three R&D and production bases in the provinces of Jiangsu and Zhejiang, China.Four major production and processing plants.Three technical support and R&D centers in Europe and Southeast Asia.Sedeke products are sold in more than 50 countries and regions worldwide.
Sedeke has filed trademark applications in nine countries, including Germany, India, Turkey, and Mexico. Products are widely used in automotive wiring harnesses, new energy wiring harnesses, home appliance wiring harnesses, rail transit wiring harnesses, aerospace wiring harnesses, electronics and electrical appliances, power and telecommunications, the electrical equipment industry, and the industrial intelligence sector.
