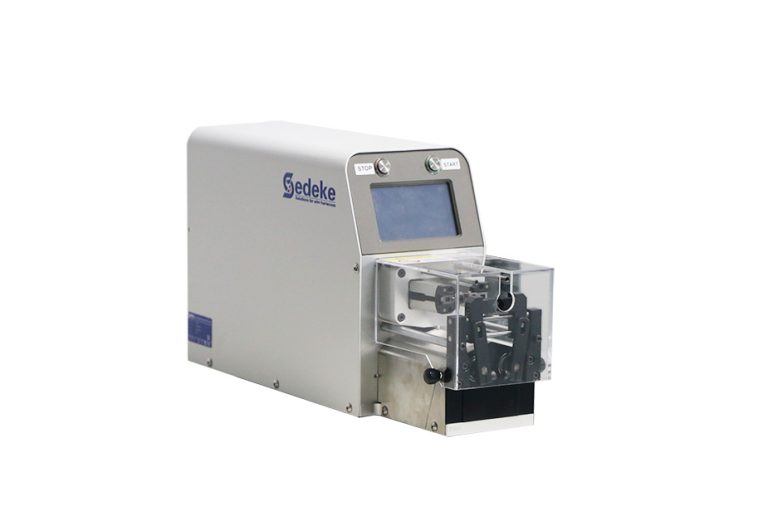

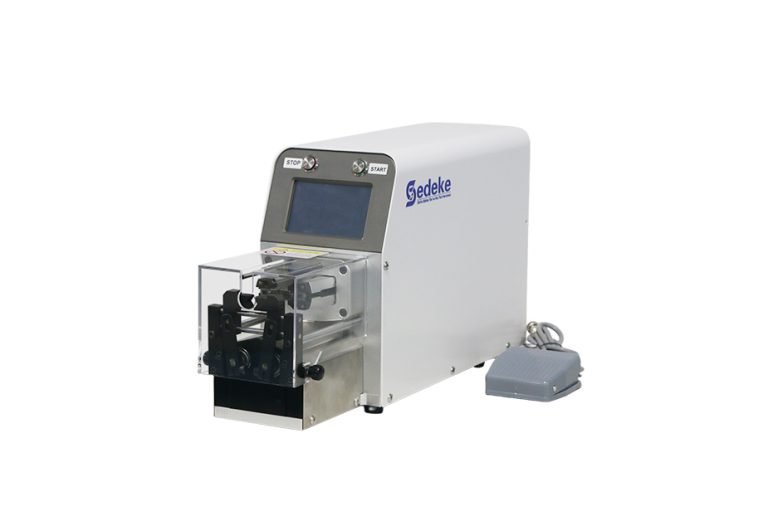

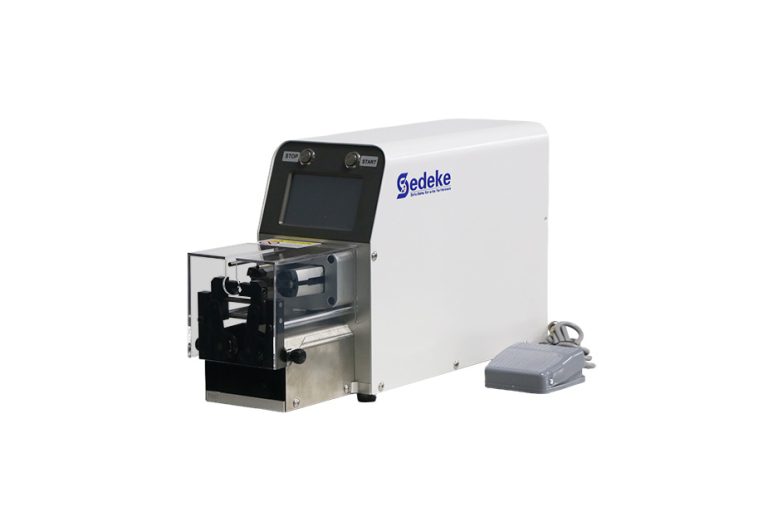

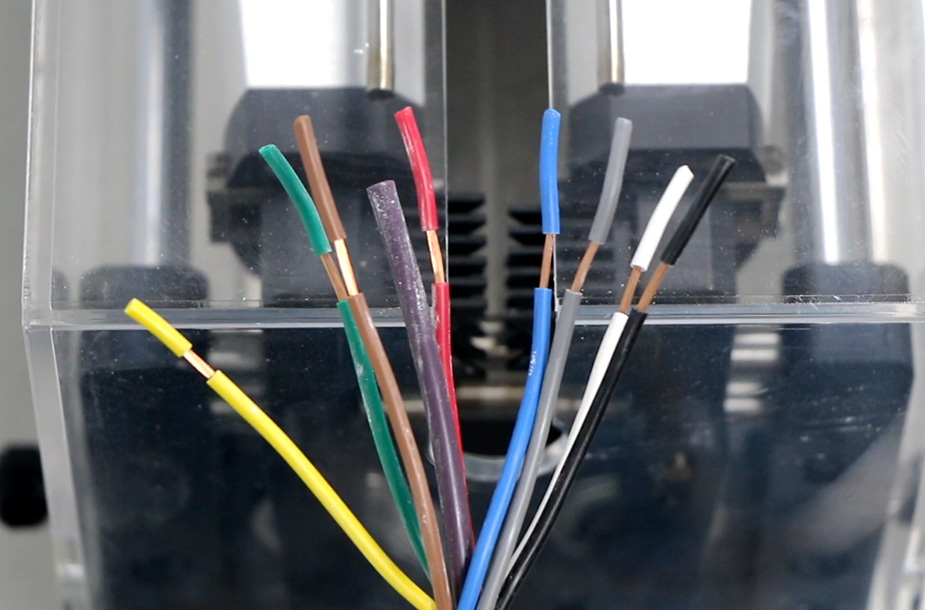

This machine is a fully programmable peeling device, designed to peel multilayer coaxial cables, multi-core sheathed cables, and core wires in a programmed sequence.
It features high-precision rotary peeling for coaxial cables, capable of stripping up to five layers.
The graphical HMI system interface is intuitive and user-friendly, making operation more convenient and speedy.
It supports programming cycle processing for multiple wire diameters based on production needs.
Multiple sets of production processes can be stored, enabling quick switching for small-batch orders.
Its clever protective cover design guarantees safe operation while maintaining efficiency.
An independent waste collection and treatment box is adopted to gather waste wire residues and keep the equipment clean.
It allows for quick process switching via a scanning gun.
PARAMETER
Model
CS-4507

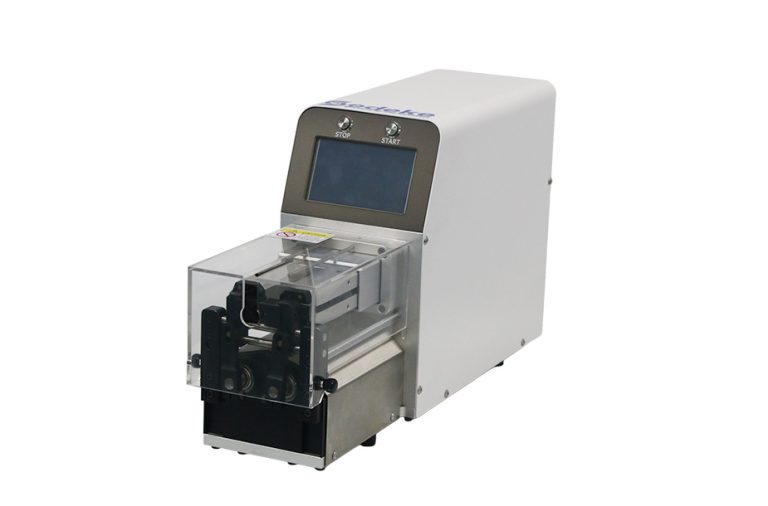

CS-6010
Dimensions(L*W*H)
495*138*260mm
550*170*330mm
Weight
13.8kg
23kg
Processing diameter
0.5-7mm
1-10mm
Max.stripping length
0-45mm
60mm
Stripping length setting unit
0.01mm
0.01mm
Max.stripping layers
0.01mm
0.01mm
Number of blades
4 layers(Multi-core sheathed cable:up to 3 inner cores)
