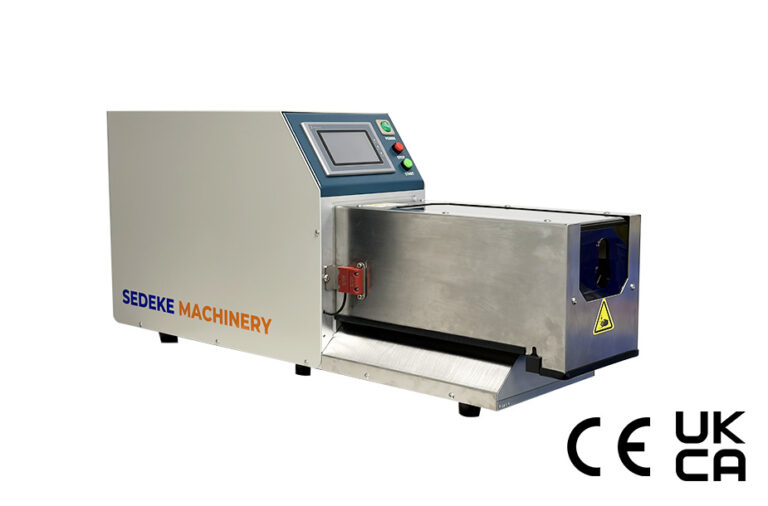

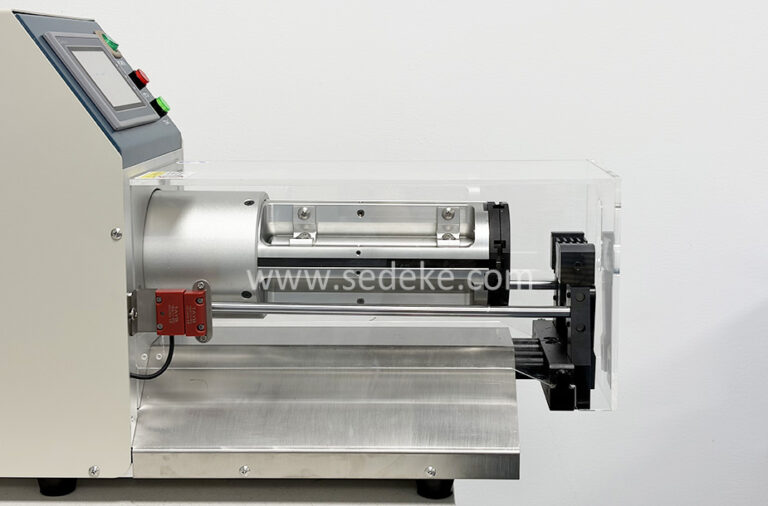

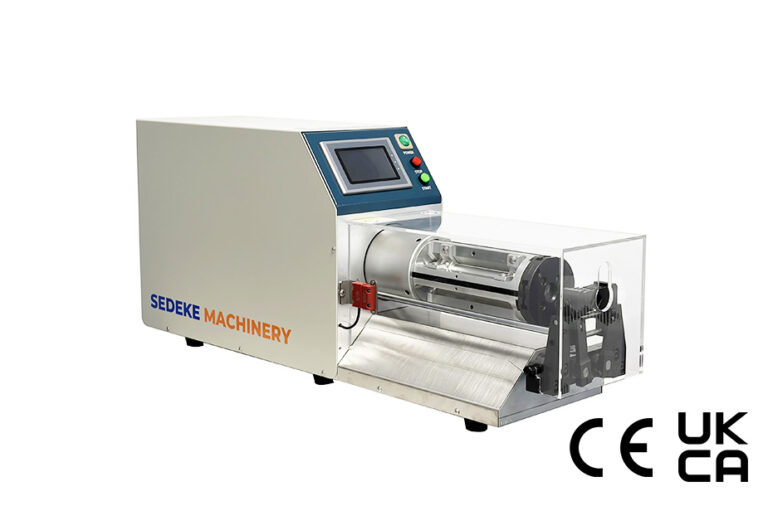

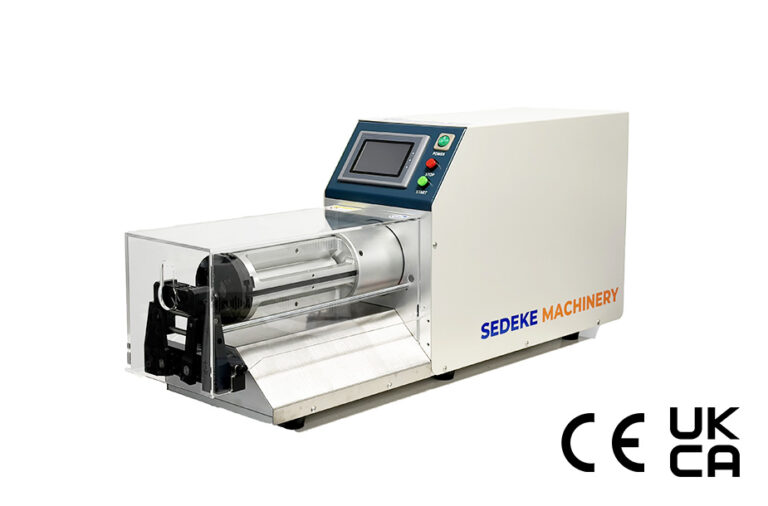

The CS-2023T is a semi-automatic stripping machine specifically designed for multi-layer coaxial cables. It is equipped with a servo ball screw and rotary cutting technology, and features an autonomous motion control system paired with a 5-inch touchscreen, ensuring simple operation and high consistency in cable length and stripping dimensions.
Product Applications
The product is suitable for processing the following materials:
Processing Methods:
| Model | CS‑2023T |
| Display | Color Touchscreen |
| Operating Temperature | 0‑50°C (Suitable for those with moderate dryness) |
| Storage and Transportation Temperature | ‑20°C‑65°C |
| Maximum Conduit Diameter | φ18 |
| Processing Range | 0.75‑30 square millimeters |
| Cutting Length | 1‑99999.99 mm |
| Centering Blades | 4 pieces |
| Cutting Tolerance | Less than 0.002 × L (L = Cutting Length) |
| Drive Method | Motor / Ball Screw Drive |
| Number of Blades | 4 |
| Cooling Method | Air Cooling |
