STRIP COAXIAL CABLES UP TO 6 LAYERS — 750–1,150 PCS/HOUR

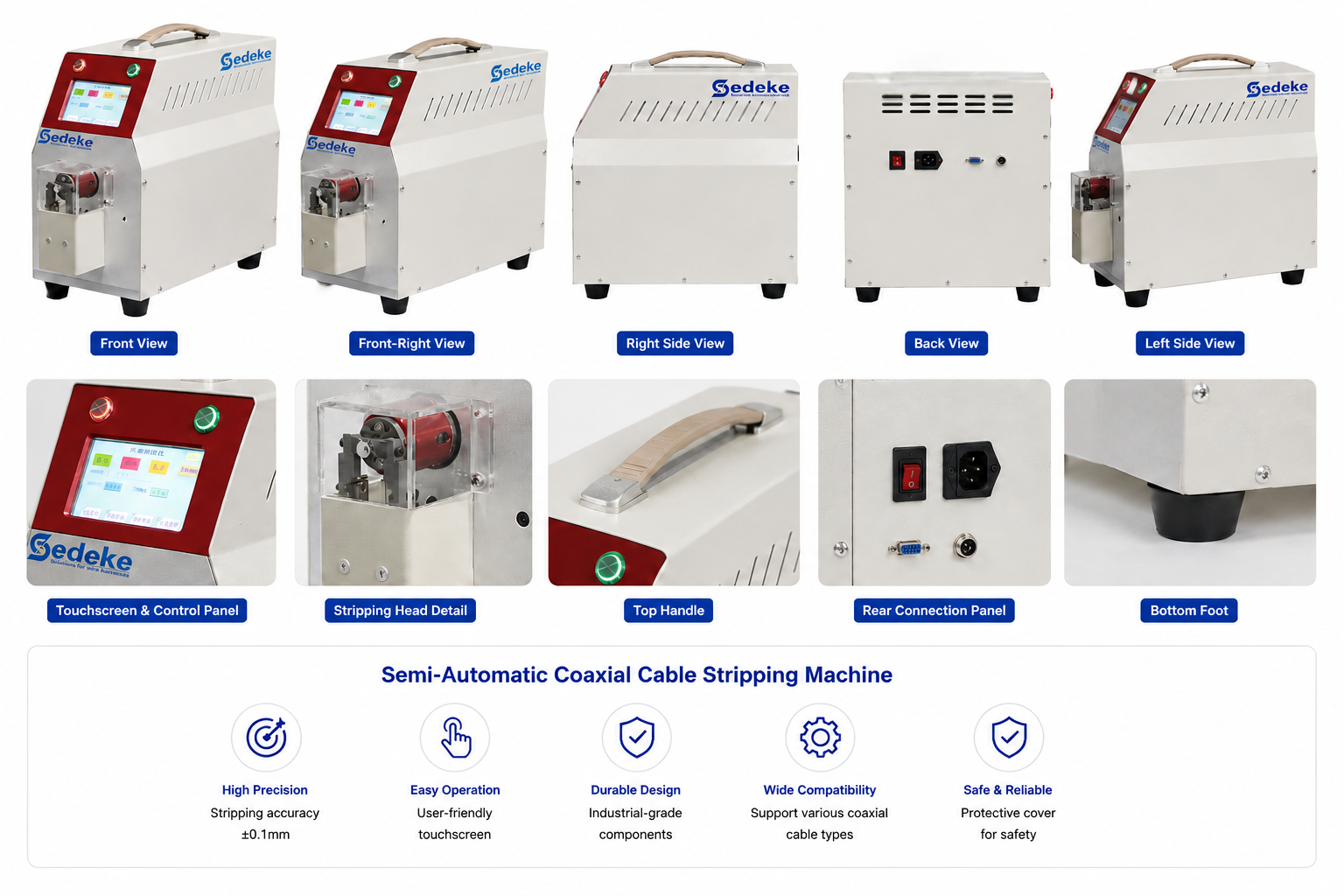

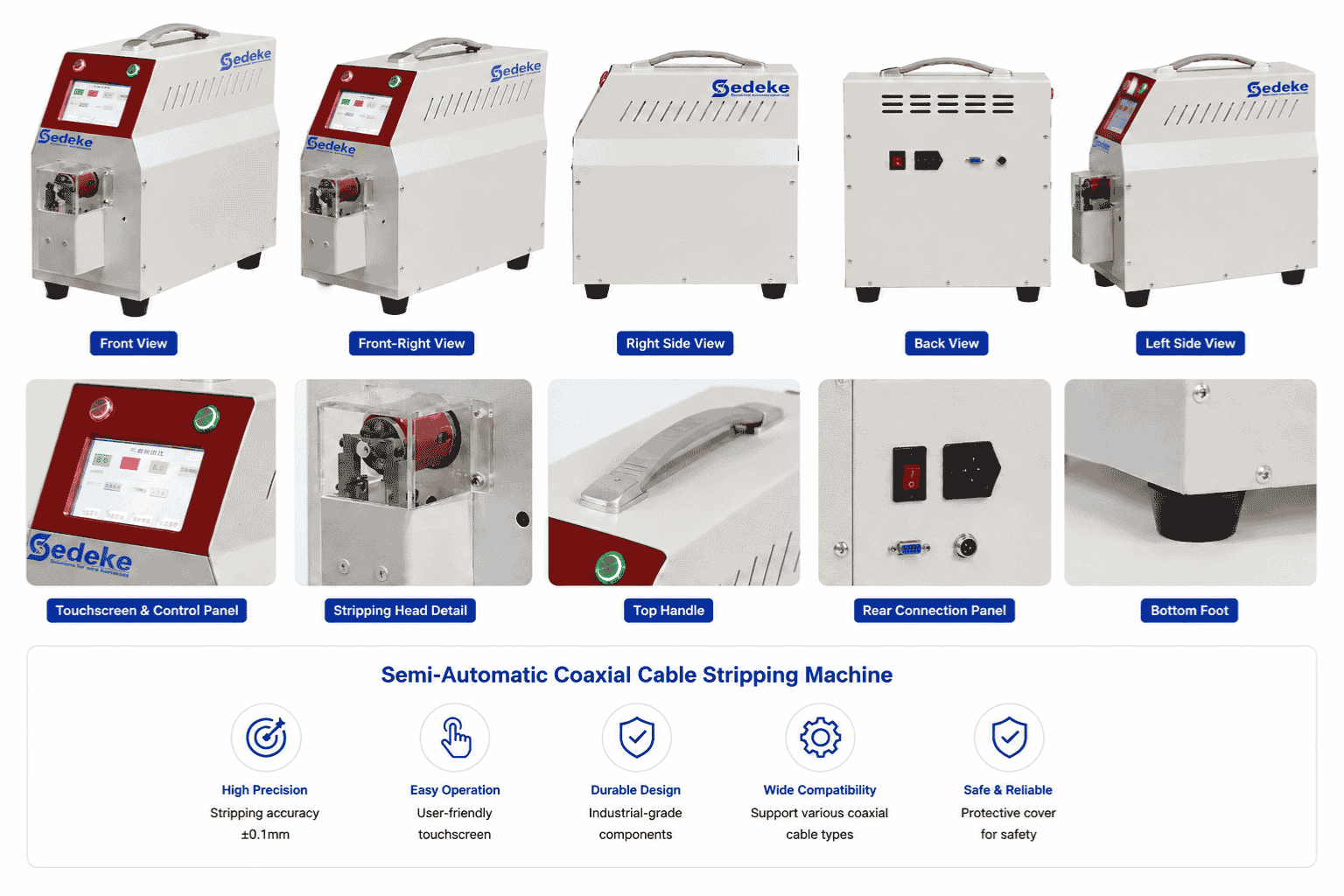

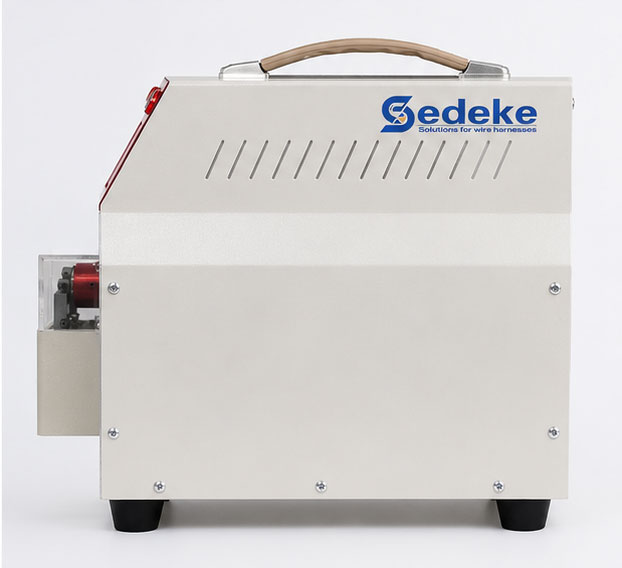

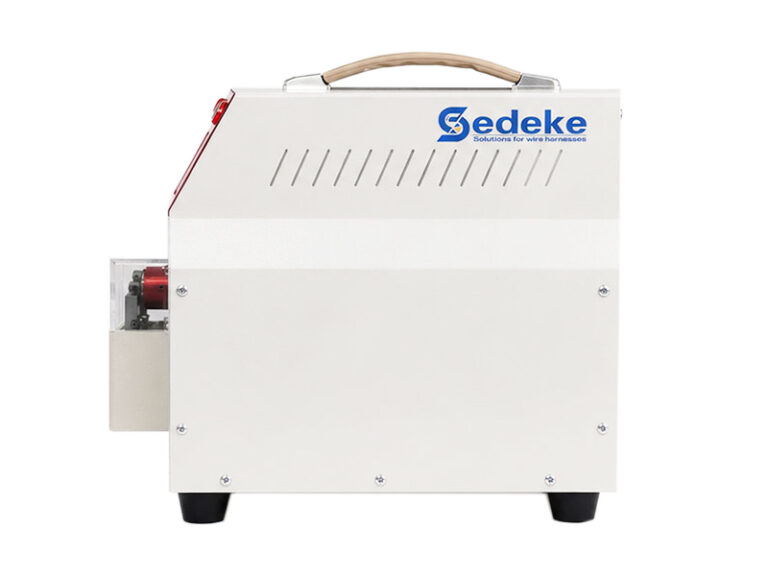

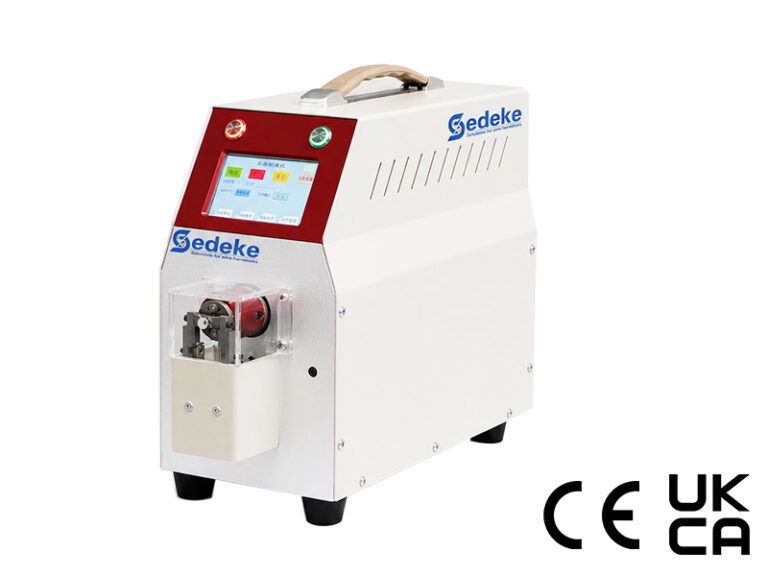

CS-0520 Semi-Automatic Coaxial Cable Stripping Machine ±0.01mm Precision | 99-Program Storage | Auto Waste Collection

The CS-0520 is a semi-automatic coaxial cable stripping machine engineered for high-precision, multi-layer stripping of ultra-fine coaxial cables in telecommunications and medical device manufacturing. With a wire diameter range of 0.4–1.8mm and a maximum stripping depth of 6 layers, it handles complex coaxial cable structures that standard strippers cannot process reliably.

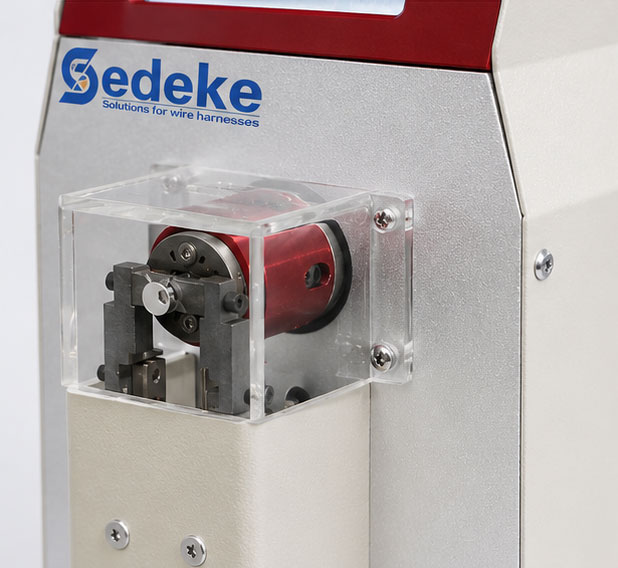

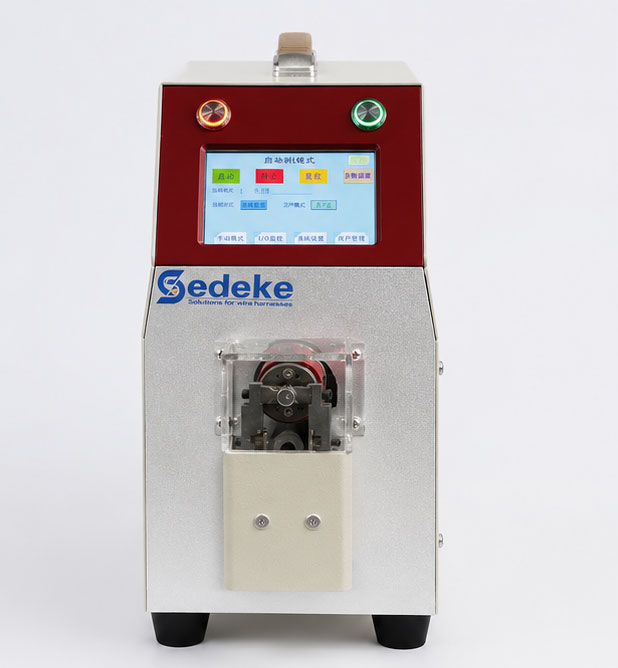

Stripping length and cutting depth are both programmable to 0.01mm increments via an intuitive HMI interface, eliminating conductor damage caused by inconsistent manual depth setting. The rotating blade head — featuring 3 rotary blades and 3 wire-guard blades — maintains stable cutting geometry across production runs, extending blade service life and reducing scrap rates.

Key Features:

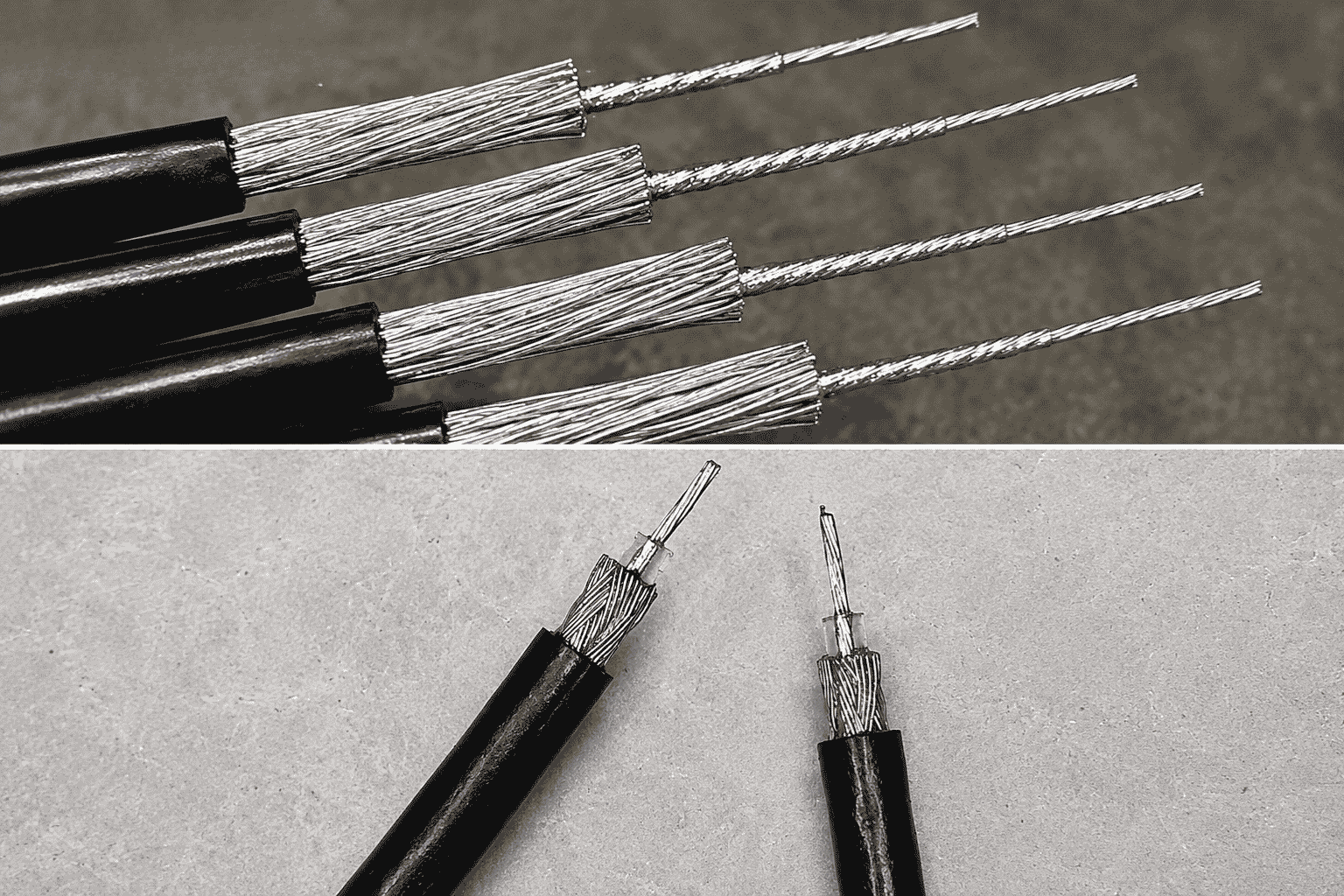

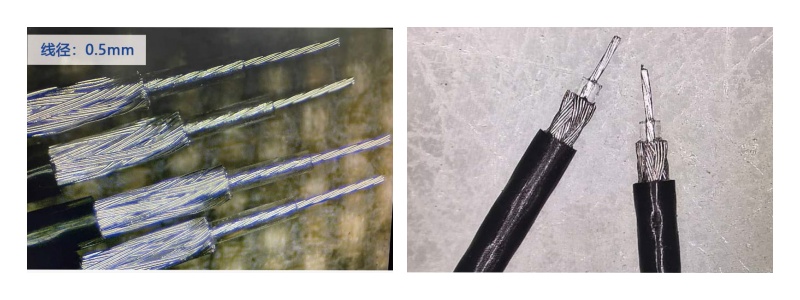

6-layer coaxial stripping — processes outer jacket, shielding braid, foil, dielectric, and inner conductor layers in a controlled sequence
±0.01mm stripping length and depth resolution — prevents nicking or scoring on fine coaxial conductors (0.4–1.8mm diameter)
99-program memory — stores parameters for different cable types, enabling fast model changeover with zero re-programming time
3-blade rotating head with wire-guard design — improves cut stability and extends blade service life compared to standard fixed-blade strippers
Automatic insulation waste suction — collects stripped debris automatically, keeping the workstation clean during continuous production
Lead screw motor drive — delivers consistent blade travel speed for repeatable results across all 750–1,150 pcs/hour output
Compact 18kg footprint — can be mounted inline with automatic feeding equipment for semi-automated line integration

Typical Applications in Wire Harness Production:

Pre-cutting heat shrink tubing before insertion onto wire ends or terminal joints
Batch cutting of insulation sleeves for automotive wiring harness assembly
Cutting silicone tube segments for high-temperature wire harness in EV and industrial applications
Processing braided sleeving for cable shielding and protection

PARAMETER

Parameter	Specification
Max. Stripping Length	0–20 mm
Wire Diameter Range	0.4–1.8 mm
Stripping Length Setting Unit	0.01 mm
Cutting Depth Setting Unit	0.01 mm
Max. Stripping Layers	6
Number of Blades	3
Number of Wire-Guard Blades	3
Power Supply	AC 220V / 110V, 50/60Hz
Power Consumption	300W
Dimensions (W × D × H)	310 × 140 × 280 mm
Net Weight	18 kg
Drive System	Lead Screw Motor
Waste Handling	Automatic suction collection
Production Output	750–1,150 pcs/hour (varies by cable type)

APPLICATION

The CS-0520 semi-automatic coaxial cable stripping machine is designed for precision stripping applications where standard wire strippers fail to deliver consistent, damage-free results on multi-layer coaxial structures.

Automotive Wire Harness Manufacturing
Pre-cut heat shrink tubing is a critical step in automotive wiring harness assembly. The EC-6100 delivers consistent cut lengths at high speed, compatible with PVC and PE heat shrink tube commonly used in automotive connector sealing and wire end protection.

New Energy Vehicle (EV) Cable Processing
EV high-voltage cable assemblies require silicone and PVDF heat shrink tube due to elevated temperature requirements. The EC-6100 handles these materials cleanly without blade contamination or edge deformation.

Consumer Electronics & Appliance Wire Harness
For household appliance and electronics wiring harness production, the EC-6100 processes small-diameter shrink tubing and insulation sleeves with ±0.5mm cut accuracy, reducing scrap rates on high-mix production lines.

Industrial Cable Assembly
Suitable for cutting braided sleeving, rubber hose, and flexible tubing used in industrial machinery cable protection applications.
