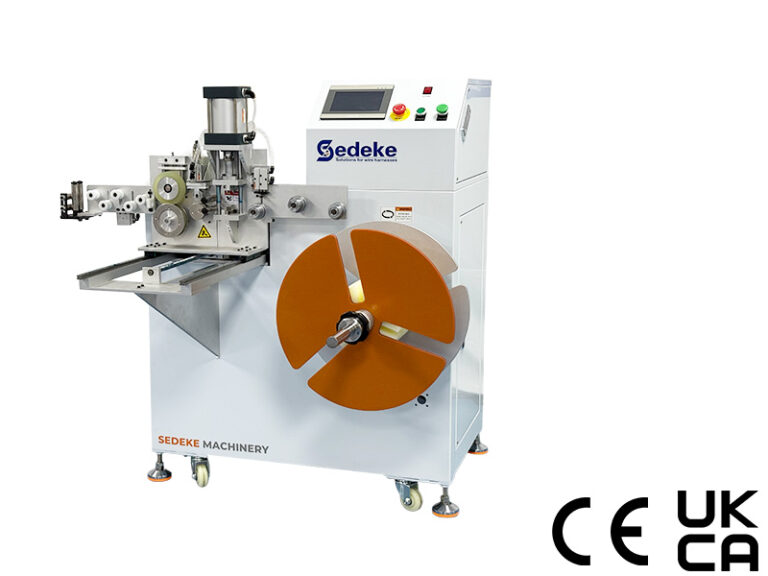

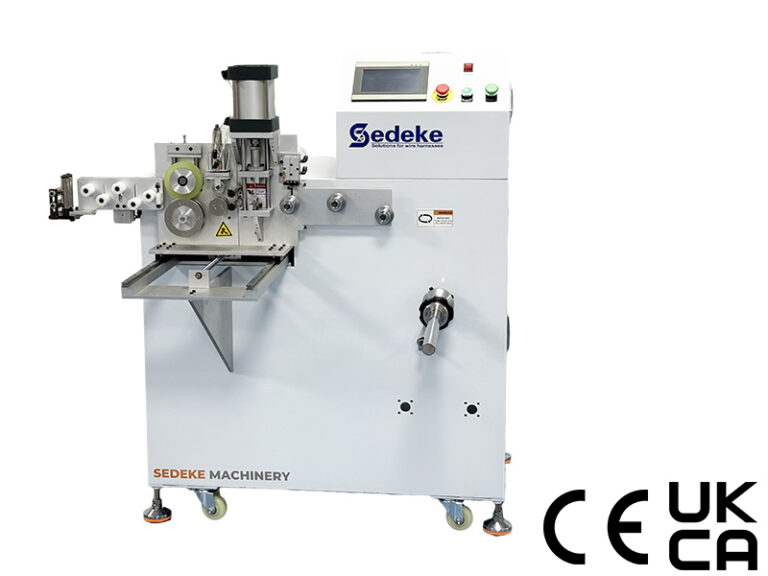

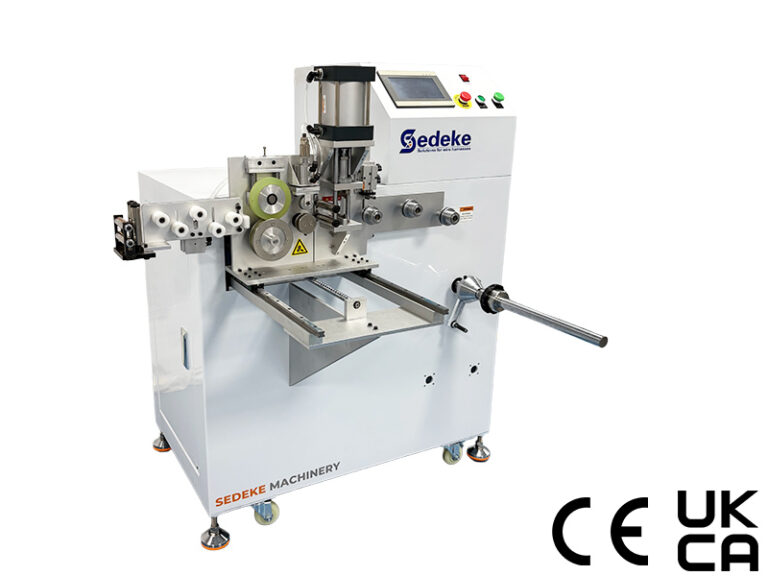

The CB-F500 is a high-efficiency floor-standing automatic winding machine, designed to combine precision with versatility.
Equipped with an advanced rotary optical encoder, it achieves high-precision metre counting. Operators can easily set the target winding length.

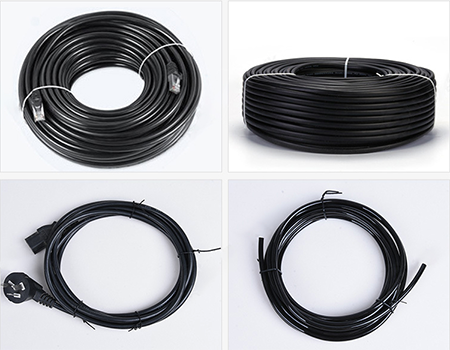

During the winding process, the machine automatically sorts and neatly arranges the wire, ensuring the final coil is tightly wound and perfectly aligned, without the need for manual intervention.
Equipped with a reliable PLC control system, it delivers stable, intelligent and highly automated operation.

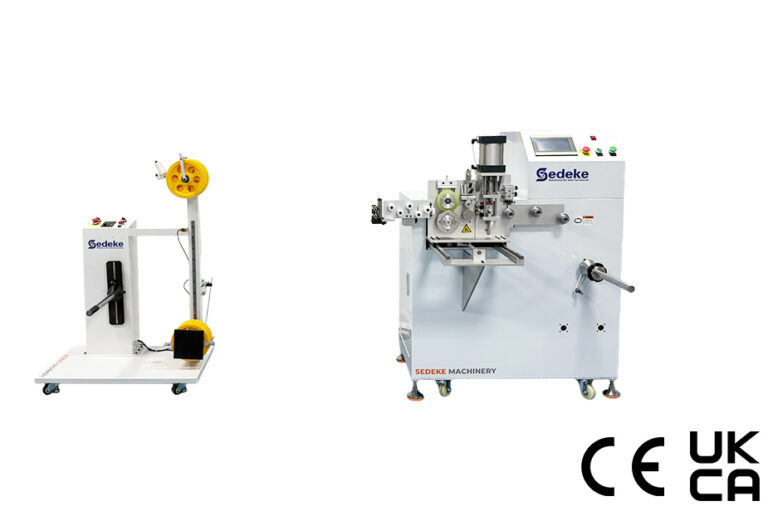

Fitted with an automatic wire feeding mechanism, it can precisely position and seamlessly wind wire of various lengths and dimensions.
| Model | CB-F500 |
| Loading weight | 50KG |
| Winding inner diameter | 50-300mm |
| Winding length or number of turns | Adjustable |
| Disc diameter | Standard 350mm |
| Sorting stroke | Standard 200mm |
| Winding speed | 1-8 turns/S |
| Input voltage | AC220V 50HZ/60HZ |
| Rated power | 2500W |
| Weight | 150KG |
| Dimensions | L1250×W1040×H1280MM |
