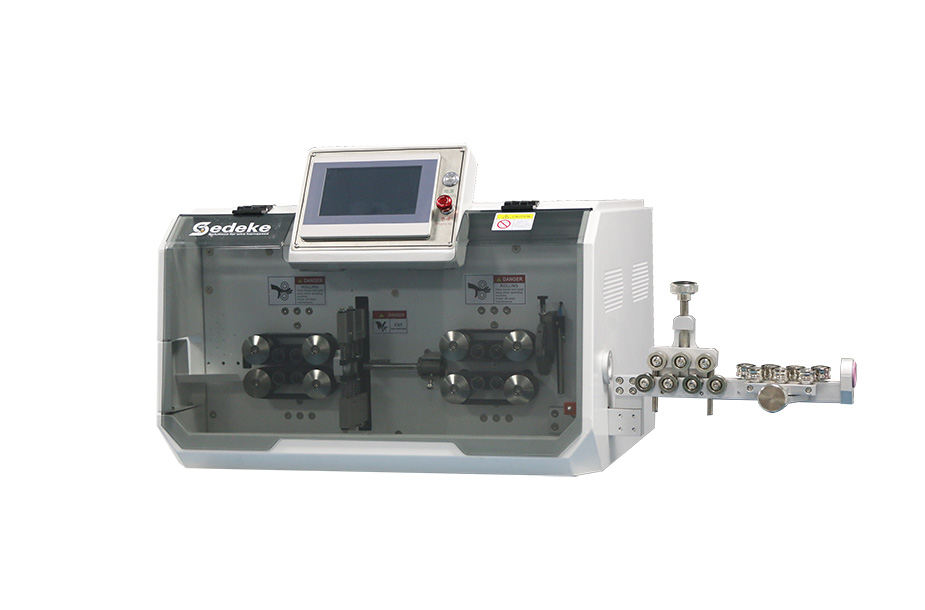

This ESC-BX30S automatic sheathed cable cutting and stripping machine is a large diameter cable cutting and stripping machine which is suitable for large diameter wires and multi-core wires.

  1. Electric wire and cable, automatic cutting and stripping;
  2. Multi-core sheathed wire stripping and multi-core wire stripping are completed at one time.
    Display    7 inch touch screen
    Cable type    Cable, PVC, Sheathed cable, Multi-core sheathed cable etc.
    Stripping range    4-30mm² (including 6 cores sheath cable)
    Cutting length    1-99999.99mm
    Cutting tolerance    Less than 0.002*L(L=Cutting length)
    Stripping length    Front stripping: sheath cable full-stripping 10-120mm;core wire 1-120mm
    End stripping: sheath cable full-stripping 10-120mm;core wire 1-80mm
    Max. diameter of the conduit    Φ16mm
    Blade material    High quality imported high speed steel
    Production efficiency (pcs/h)    2300pcs/h; Sheathed cable 800pcs/h(depending on length and size of the wire)
    Driving method    16 rollers driven (silent hybrid stepping motor, servo tool rest)
    Feeding method    Belt feeding wire, no embossing, no scratches
    Remarks    Special cable can be customized,Need to send a sample wire for testing
