1. Adopts advanced drive and motion control algorithms, which can effectively improve positioning and reproducibility.
2. The cable cut and strip machine is completely controlled by the computer, which allows you to enter numbers directly with the push of a key, saving manpower.
3. All process parameters can be set by customers to realize the cutting or peeling of wires and cables of various specifications.

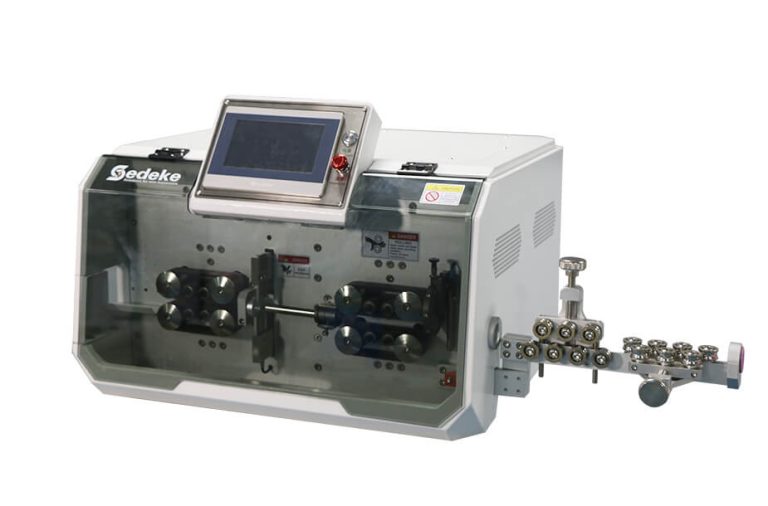

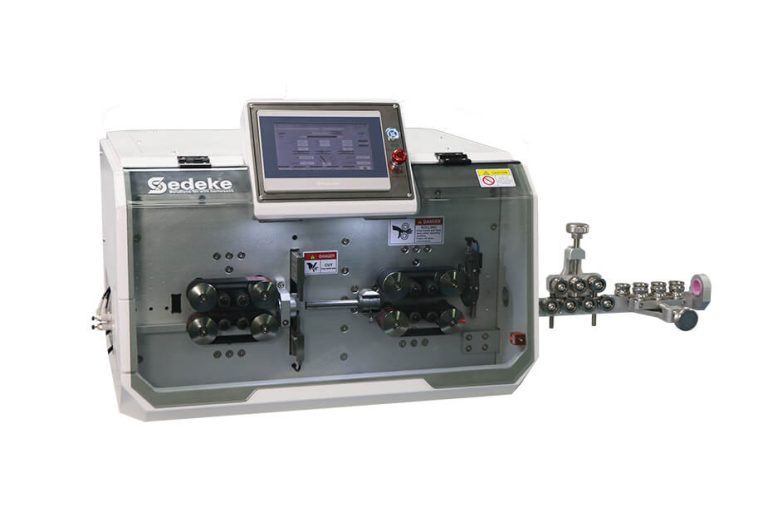

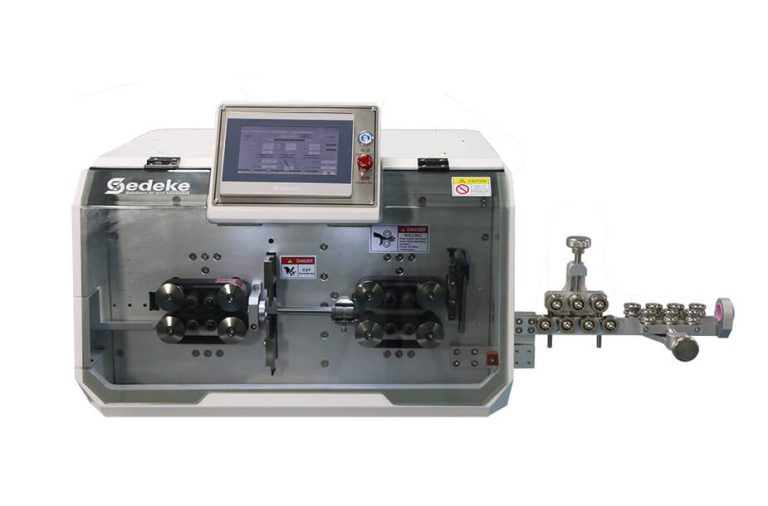

| Model | ESC-BX60 |
| Display | 7 inch touch screen |
| Processing range | 0.75-50mm² |
| Max. diameter of the conduit | Φ18mm |

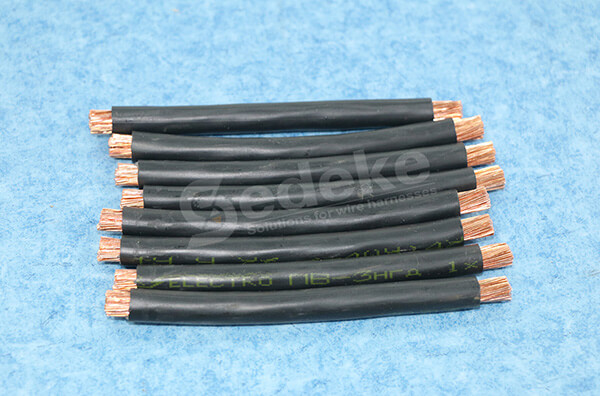

| Stripping length | Front full stripping: 1-200mm Front half stripping:1-1500mm |
| End full stripping: 1-100mm End half stripping: 1-300mm | |
| Dimensions (L*W*H) | 680*480*550mm |
| Net weight | 82kg |
| Cutting length | 1mm-999999.99mm |
| Cutting tolerance | ≤0.002*L(L=cutting length) |
| Blade material | High-quality high-speed steel |
| Productivity | 3500PCS/hour (depending on the length and size of the cable) |

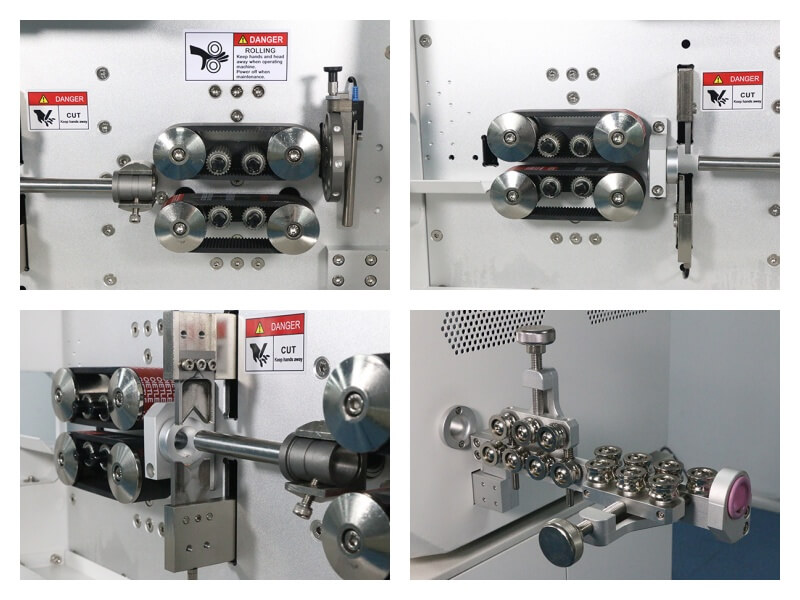

| Drive mode | 16 rollers drive (feeding-stepper motor, blades-servo motor) |
| Wire feeding method | Belt feeding, no embossing or scratches on the cable |
| Lift operation mode | Digitally adjust the height of the pressure roller |
| Power supply | AC220V 50/60Hz; 110V 50/60Hz |
| Air source | 0.5Mpa |
