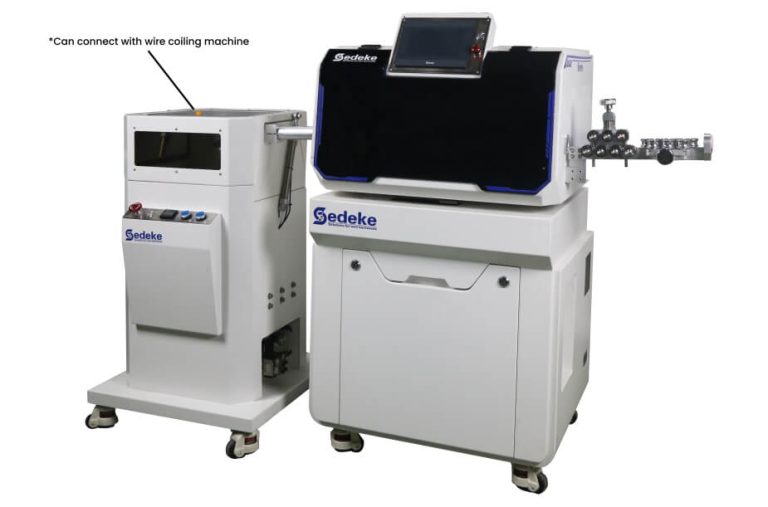

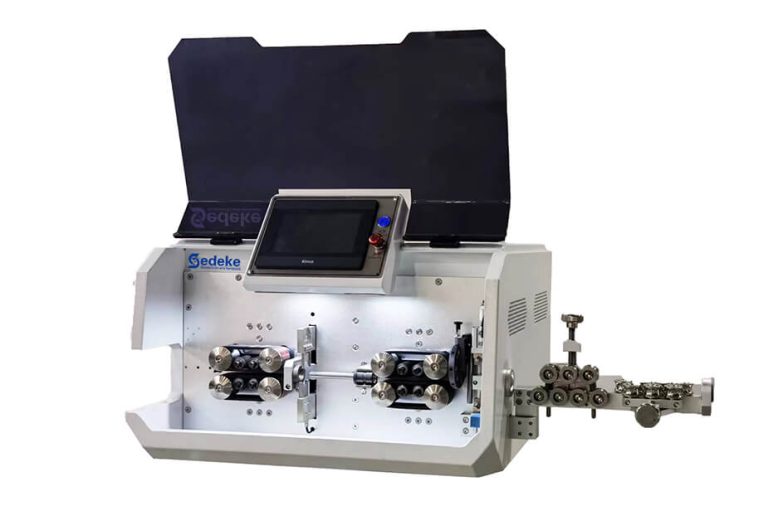

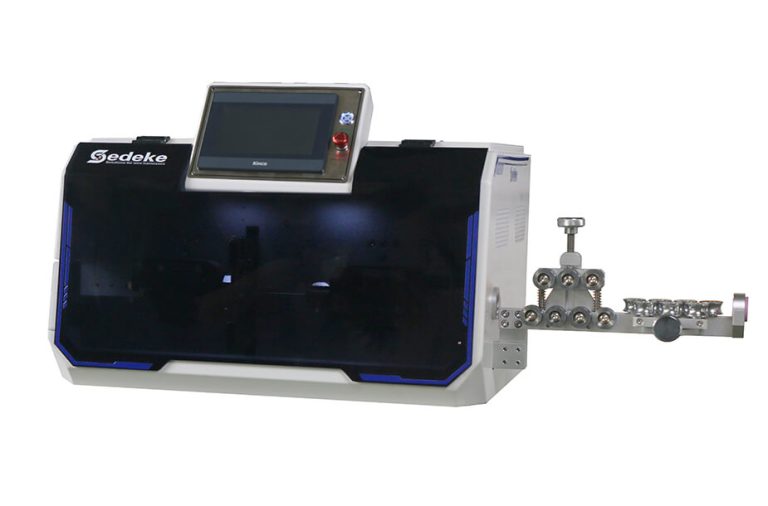

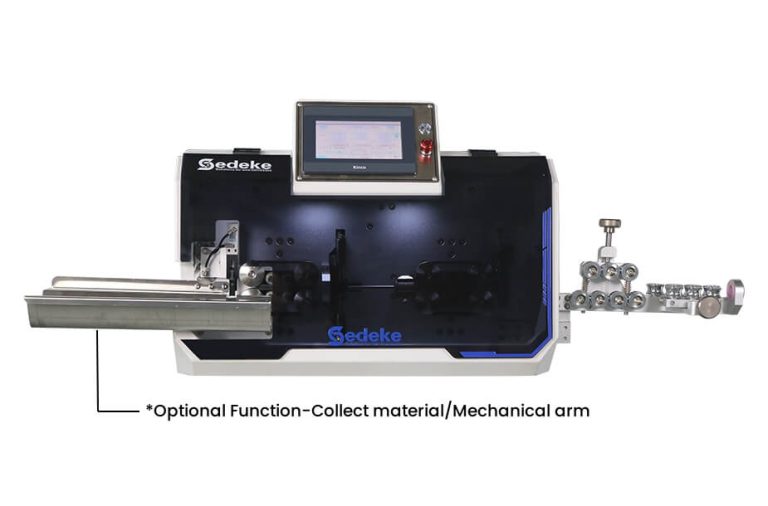

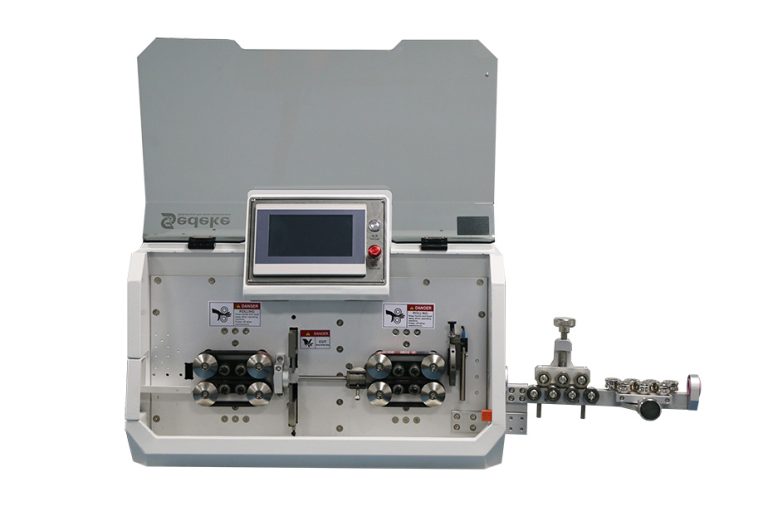

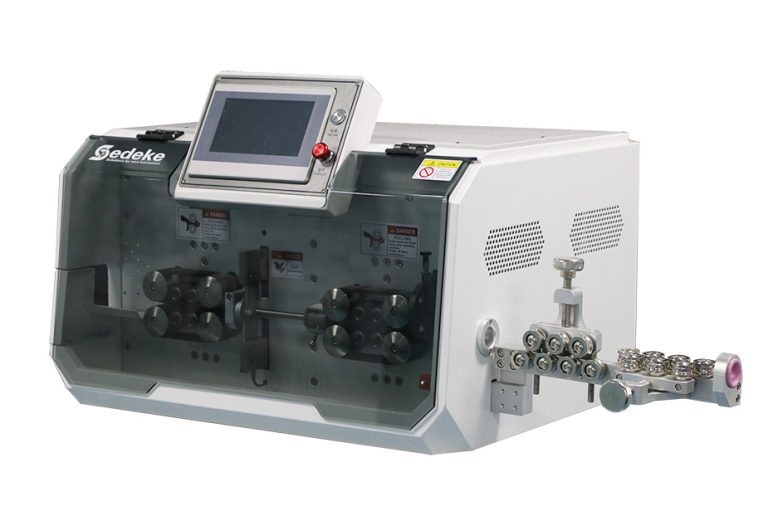

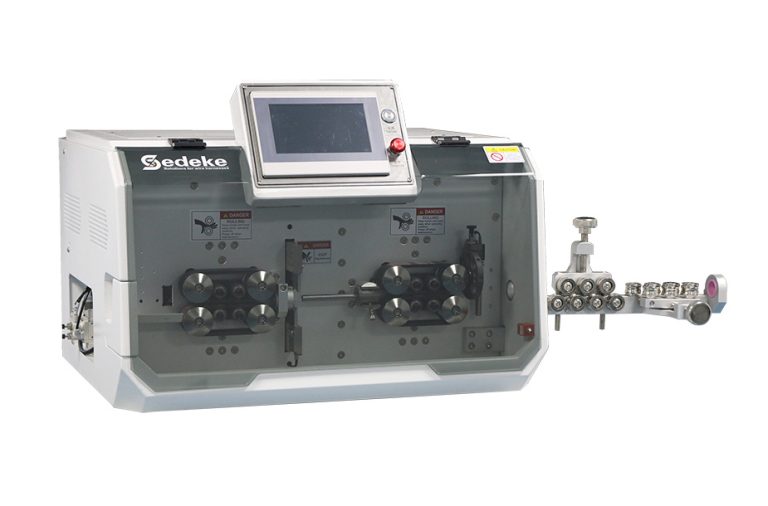

ESC-BX30 Automatic Cutting and Stripping Machine

  • Fast stripping speed
  • High cutting and stripping accuracy
  • Adjustable parameters
  • Easy to operate
Send email Order now
Share
Product Series
Cut Strip Cut Strip Crimp Strip Crimp Cut Strip Crimp Heat Shrinking Tape Processing Quality Wind Peripherials Automotive Tools

DESCRIPTION

ESC-BX30 is an automatic large cable cutting and stripping machine to cut and strip wires from 1mm2 to 30mm2.

  • Adopts advanced drive and motion control algorithms, which can effectively improve positioning and reproducibility.
  • The cable cut and strip machine is completely controlled by the computer, which allows you to enter numbers directly with the push of a key, saving manpower.
  • All process parameters can be set by customers to realize the cutting or peeling of wires and cables of various specifications.

PARAMETER

Display7 inch touch screen
FunctionElectric Wire and Cable, Automatic cutting and stripping
Cable typeWire, Cable, PVC, BVR, PU etc.
Stripping range1-30mm²
Cutting length1-99999.99mm
Cutting toleranceLess than 0.002*L(L=Cutting length)
Stripping lengthFront stripping: 1- 120mm
End stripping: 1- 190mm
Max diameter of the conduitΦ16mm
Blade materialHigh quality imported high speed steel
Production efficiency(pcs/h)2300PCS/h(depending on length and size of the wire)

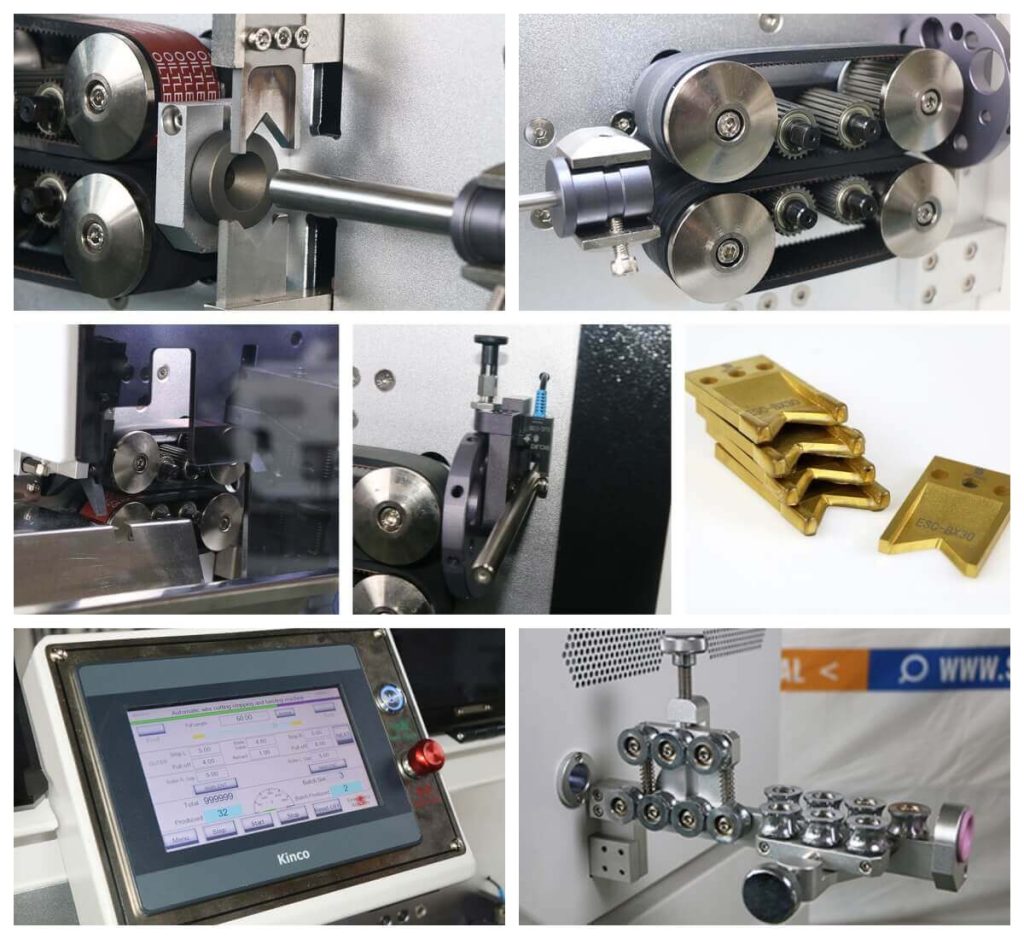

Driving method16 rollers driven(silent hybrid stepping motor,servo tool rest)
Feeding methodBelt feeding wire, no embossing, no scratches
RemarksSpecial cable can be customized,
Need to send a sample wire for testing

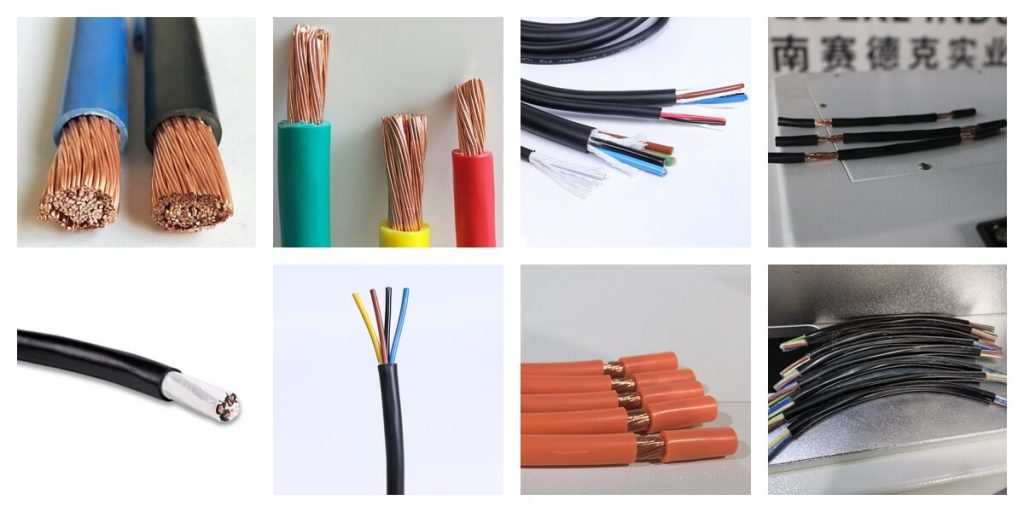

APPLICATION
