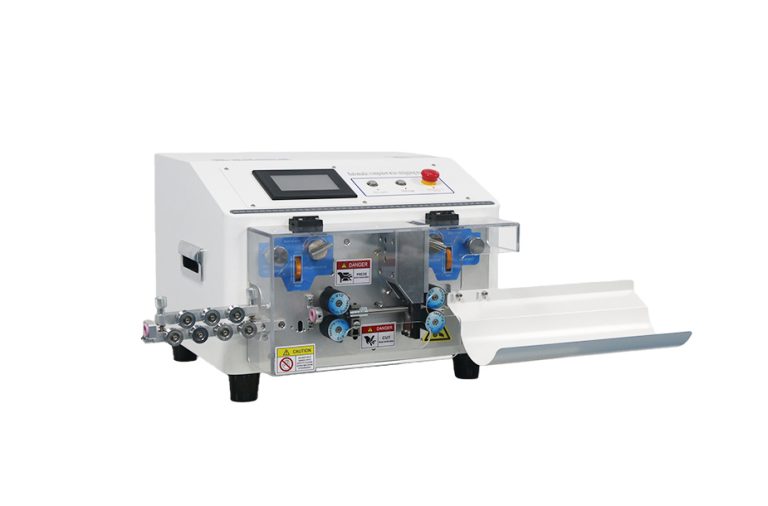

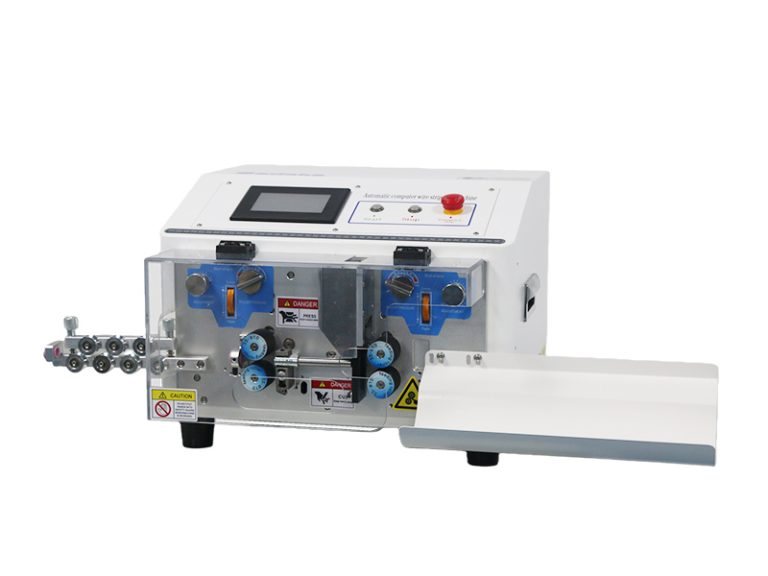

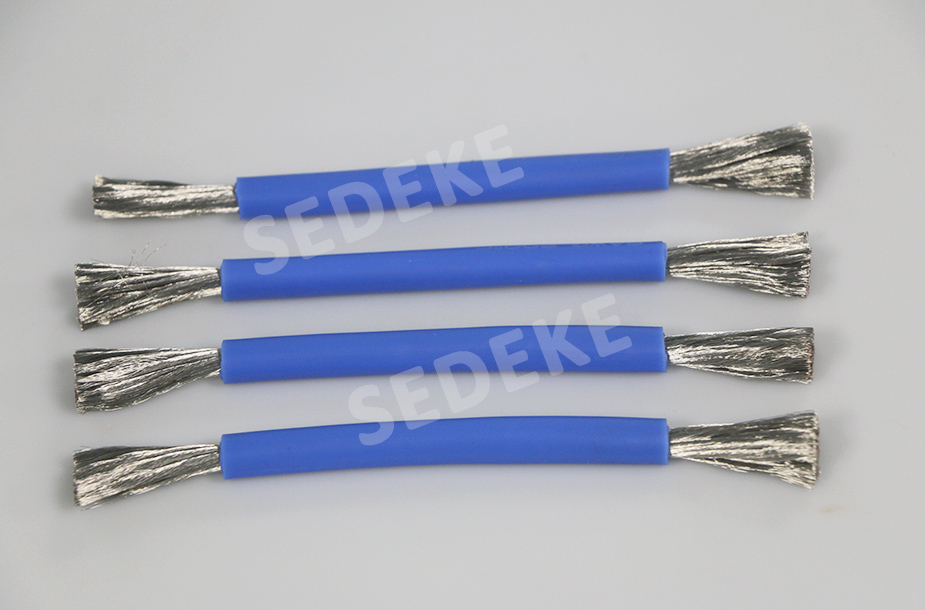

The ESC-BX16 is a wire cutting and stripping machine designed to automate the wire processing task in a manufacturing setting. It is capable of cutting wires to specified lengths and stripping the ends of the wire to expose the conductive core.
The machine can process wires with a diameter range of 0.1mm to 16mm and can cut and strip up to 7 wires at a time. It features a user-friendly interface with an LCD screen that displays the cutting length, quantity, and stripping length.
The ESC-BX16 is equipped with safety features to prevent accidents, such as an emergency stop button, safety cover, and a safety circuit. It also has a built-in memory to store commonly used settings for quick and easy access.
Overall, the ESC-BX16 is an efficient and reliable wire cutting and stripping machine that can increase productivity and reduce labor costs in manufacturing operations.
| Max. cable cross section standard | 0.1 – 16mm² |
| Pull off length left side | 0.1-30 mm |
| Pull off length right side | 0.1-30 mm |
| Intermediate Stripping | Yes |
| Max wire or cable length | 1‘000‘000 mm (39‘370”) |

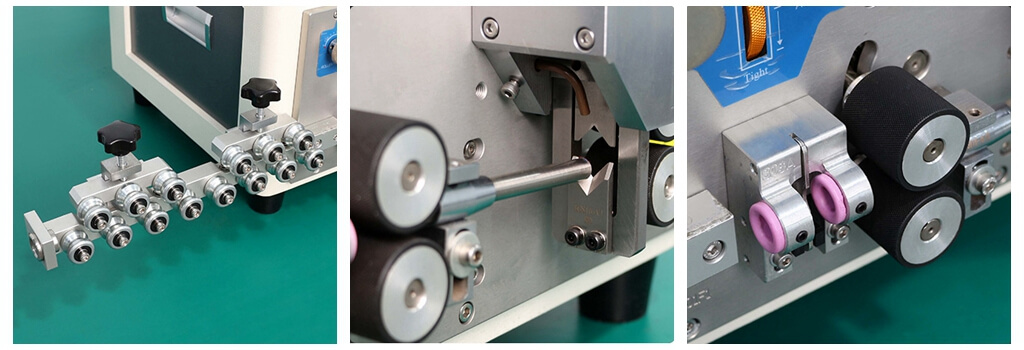

| Feeding system | 4 Rollers |
| Cutting Accuracy | (L×0.2%+0.2)mm |
| Power Supply | 110 / 220 VAC |
| Dimensions (L × W × H) | 470 x 450 x 350 mm |
| Weight | 36.5 kg |
