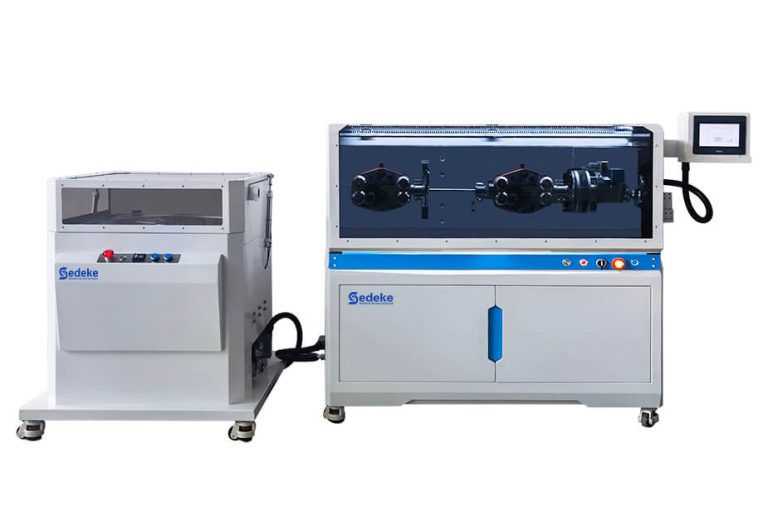

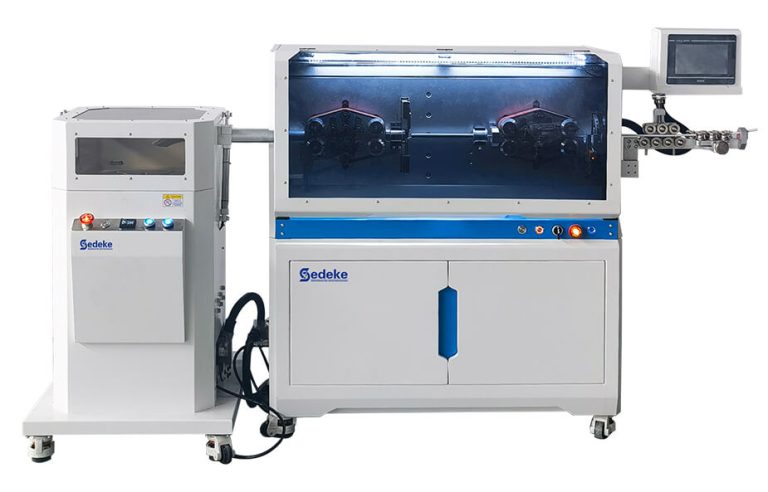

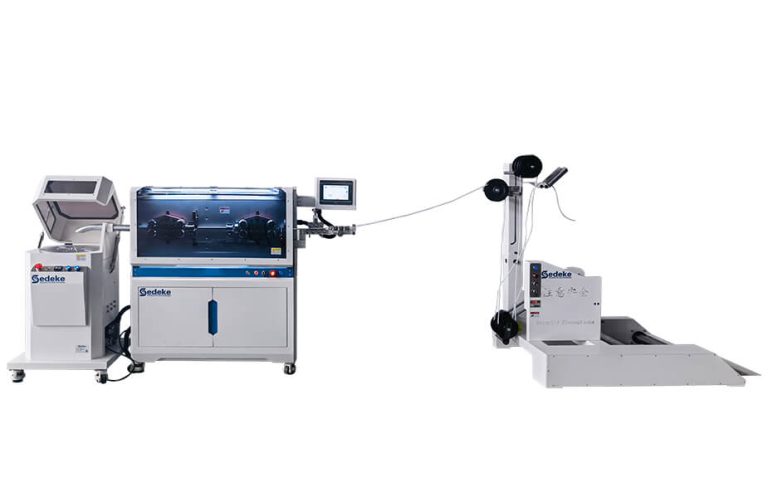

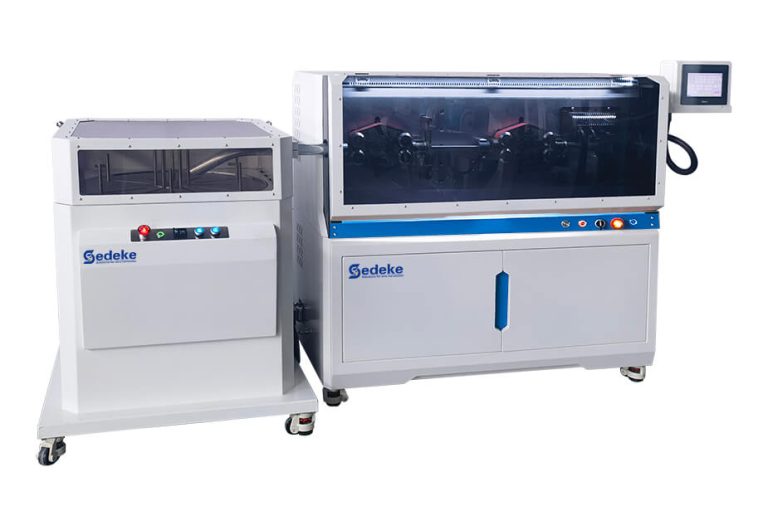

ESC-BX120 is an automatic wire cut strip machine to cut and strip wires from 1 mm2 to 120mm2.
| Max. cable outer diameter | 24.00 mm |
| Max. cable cross section standard | 1 – 120mm2 |
| Feeding system | Belts |
| Single conductor (1 step) | Yes |
| Intermediate Stripping | Yes |
| Max wire or cable length | 1‘000‘000 mm (39‘370”) |
| Pull off length left side | 1-255 mm, L≥150mm |
| Pull off length right side | 1-100 mm ;L≥150mm |
| Display | 7 inch touch screen |
| Power Supply | 110 / 220 VAC ; 1500W |
| Production efficiency (pcs/h) | 1800Pcs/h (depending on length and size of cable) |
| Weight | 270 kg |
