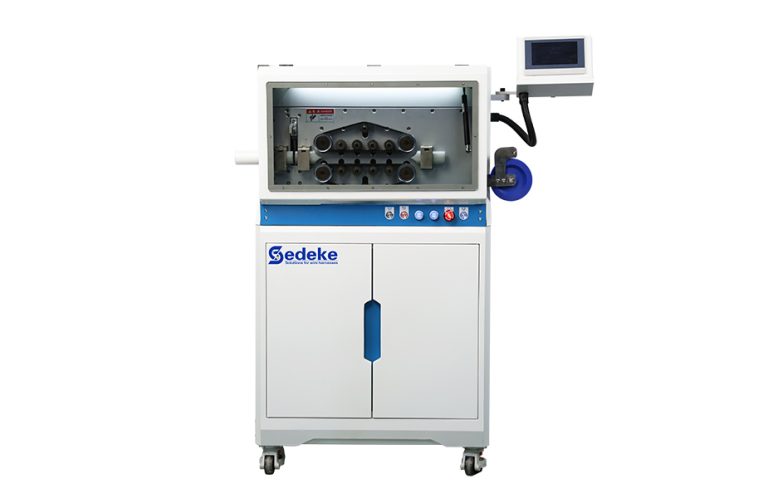

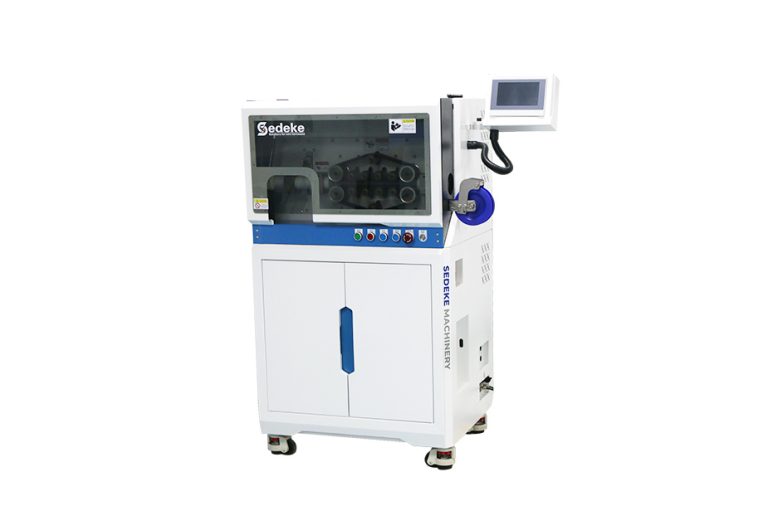

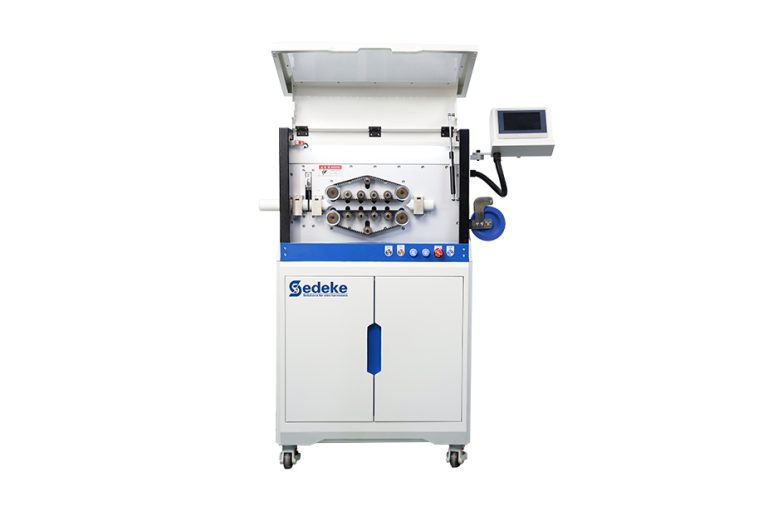

Sedeke EC-870 high-power automatic tube cutting machine adopts an integrated design and uses customized cutting tools made of high-quality steel. It can efficiently and accurately cut rubber pipes/PVC pipes, etc., with a maximum processing outer diameter of 50mm.
| Model | EC-870 |
| Display | 7 inch touch screen |
| Processing range | φ4-φ50mm |
| Cutting length | 1-999999.99mm |
| Cutting accuracy | ≤0.003*L(L= cutting length) |
| Feeding motor | Stepper motor（Optional servo motor） |
| Feeding method | 14 rollers drive Belt feeding |
| Max. diameter allowed | φ52mm |
| Power supply | 220V 50/60HZ ;110v 50/60HZ |
| Power | 2000W |
| Speed | 4000 PCS/H （L=100mm/φ10mm） |
| Dimension | L950*W670*H1300mm |
| Net weight | 145kg |
