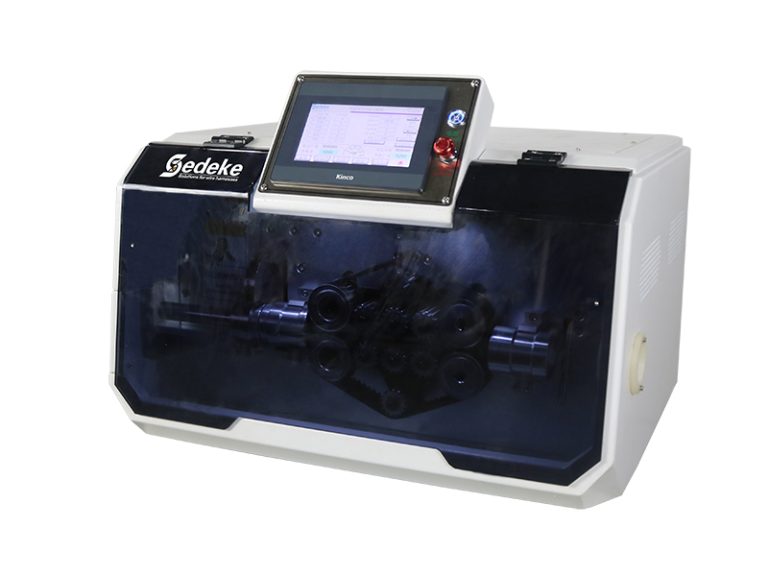

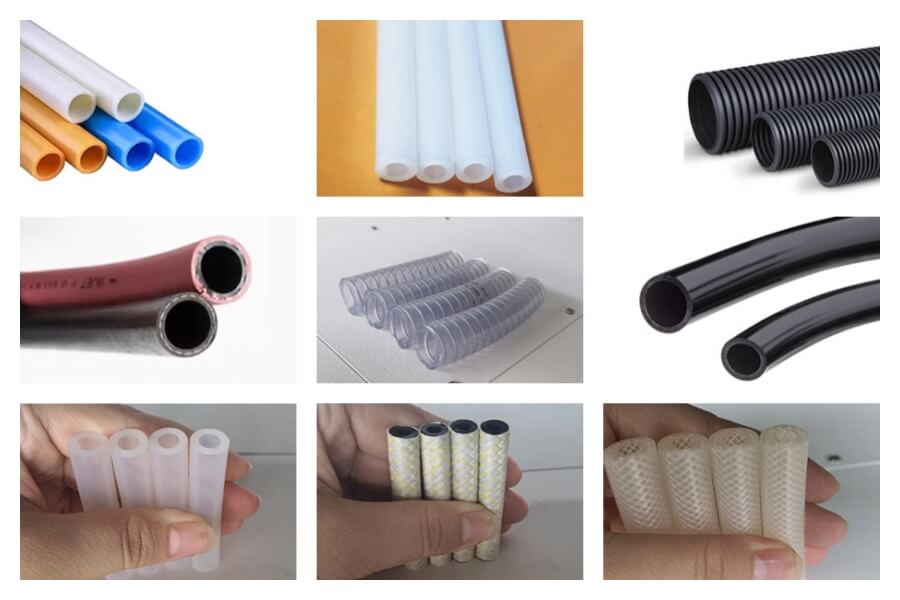

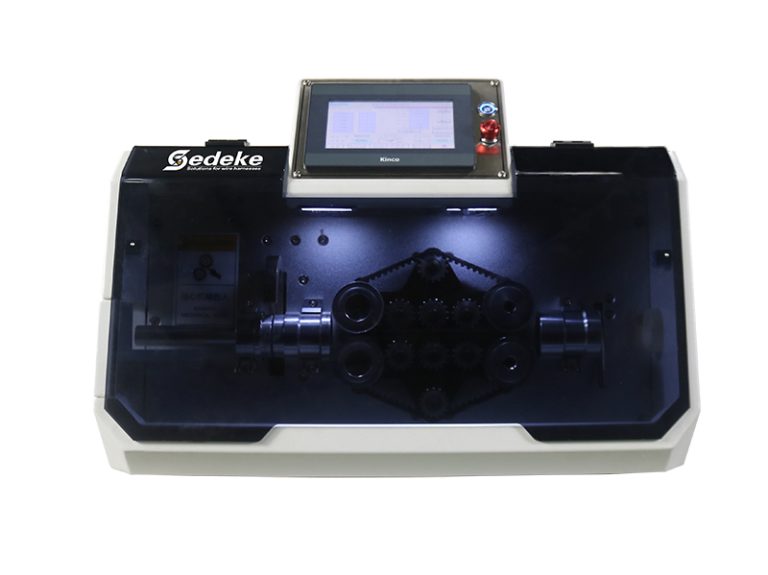

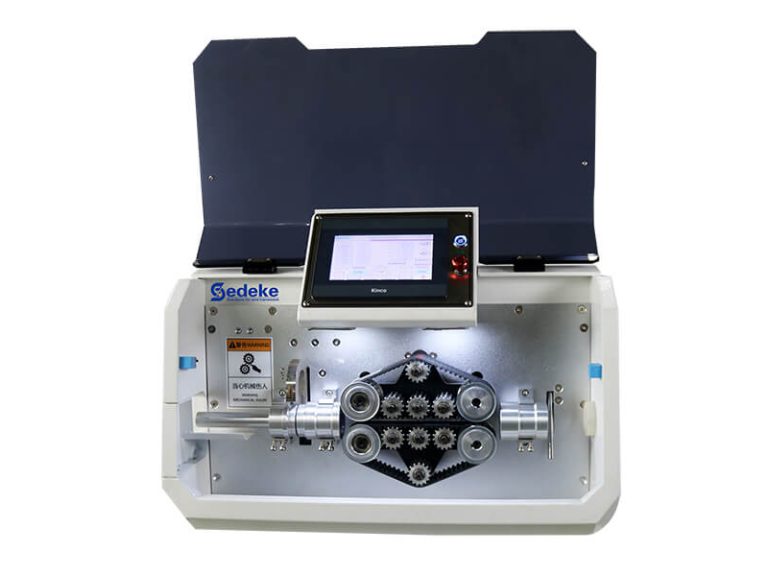

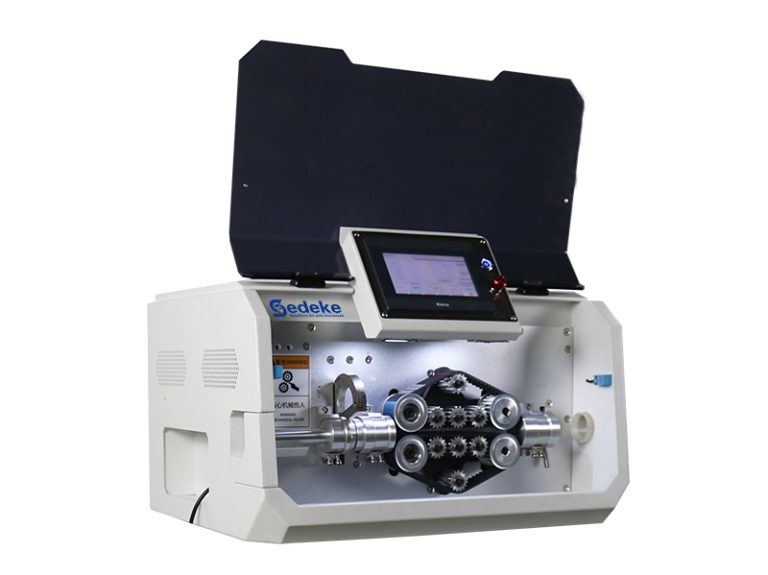

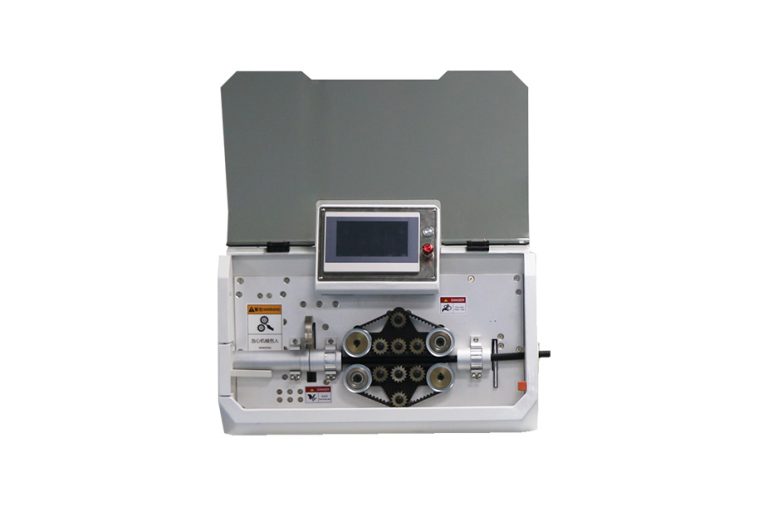

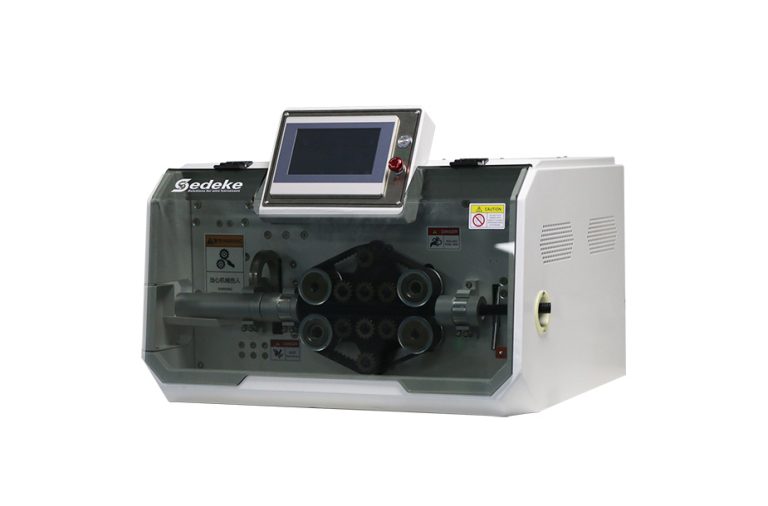

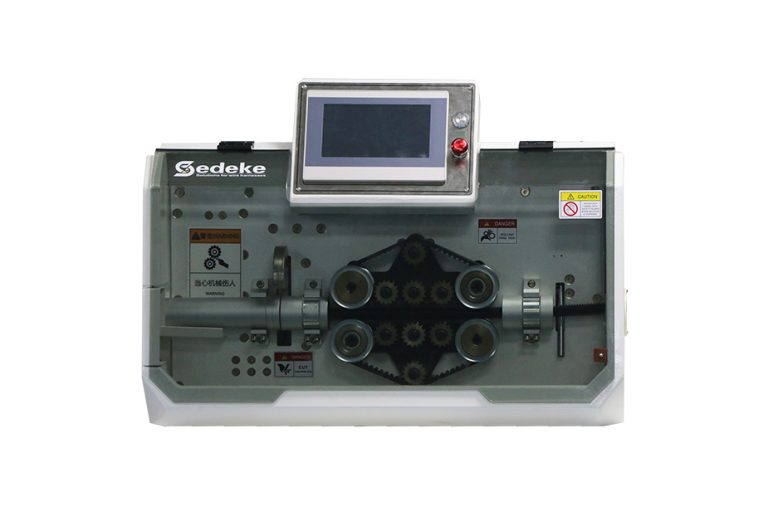

EC-830 automatic tube cutting machine,an automated solution designed to cut a variety of materials including corrugated tubes/PVC tubes/heat shrinkable tubing/Nylon hard tube etc.
This highly versatile tube cutting machine is capable of handling tubes up to 35mm outer diameter with precision and flexibility.
Customers can choose whether they need a slitting blade to achieve the splitting function.
Equipped with advanced technology and a user-friendly interface, the tube cutting machine is the ideal solution for businesses
looking to streamline their cutting processes. 1. Using uniform feed cutting;
2.Cutting efficiency can up to 80m/min;
3. Cutting accuracy can be controlled at ± 0.5%;
4. For automobile wiring harness, new energy harness, aerospace, motorcar and city rail transportation, high-voltage electricial cabinets, etc.
| Model | EC-830 |
| Display | 7 inch touch screen |
| Processing range | 4-35mm O.D. |
| Cutting length | 1-999999.9 mm |
| Cutting accuracy | 0.005*L (L=cutting length) |
| Productivity | 6000 PCS/hour (Cut length=100mm/diameter =10mm) |

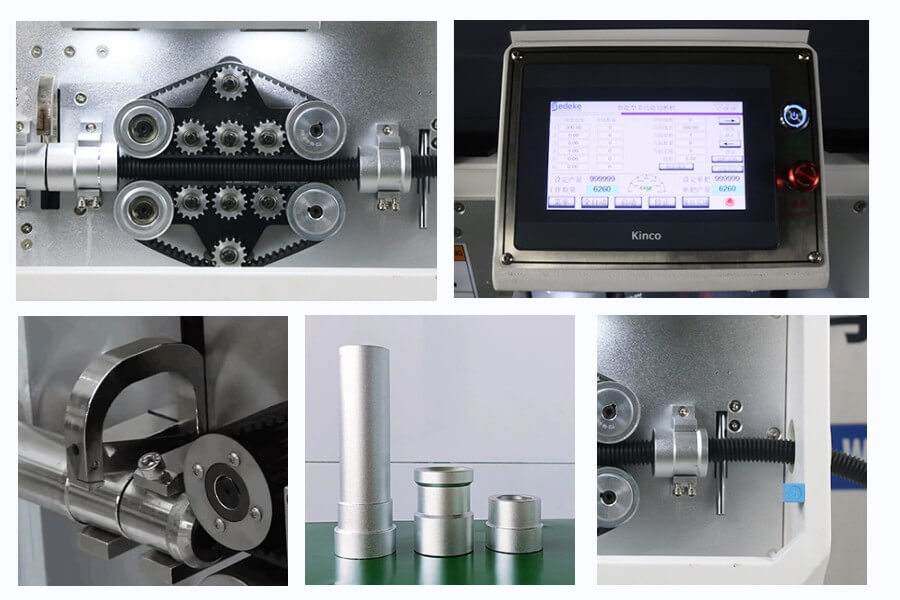

| Drive mode | 10 rollers drive |
| Feeding method | Belt feeding, no embossing or scratches on the tube |
| Lifting operation mode | Digitally adjust the height of the pressure roller |
| Slitting power mode | Optional Servo motor |
| Slitting position | 1. Any position 2. Any length 3. Continuous cutting |
| Power supply | AC220V 50/60Hz; 110V 50/60Hz |
| Dimensions (L*W*H) | 680*480*550mm |
| Net weight | 85kg |
