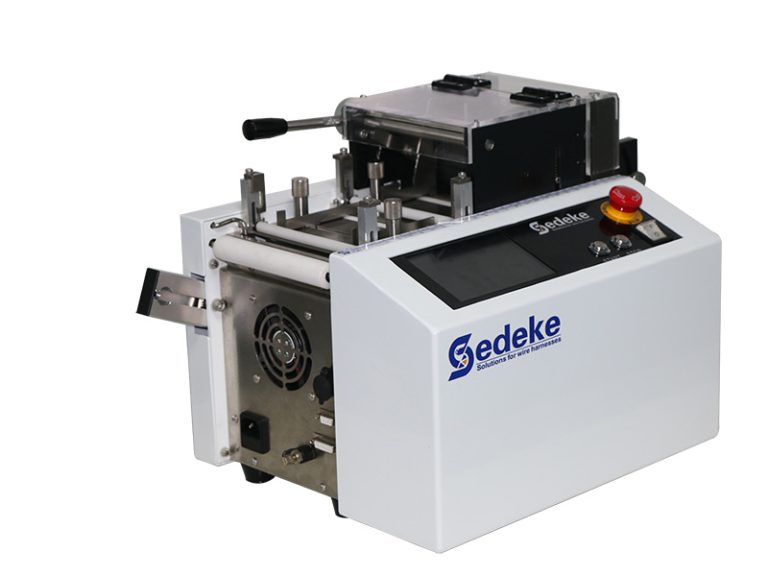

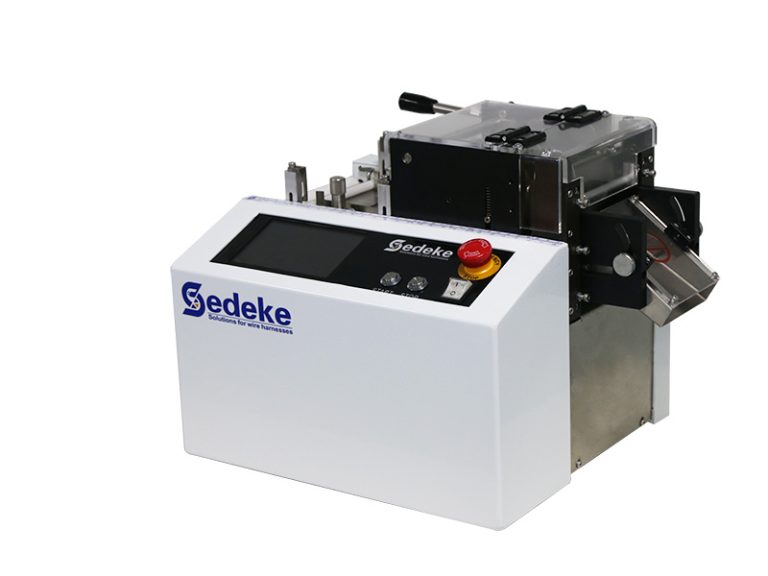

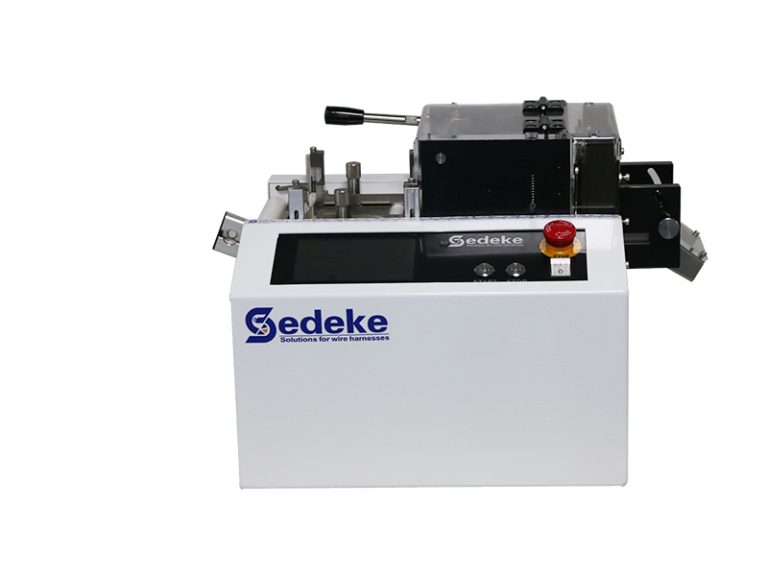

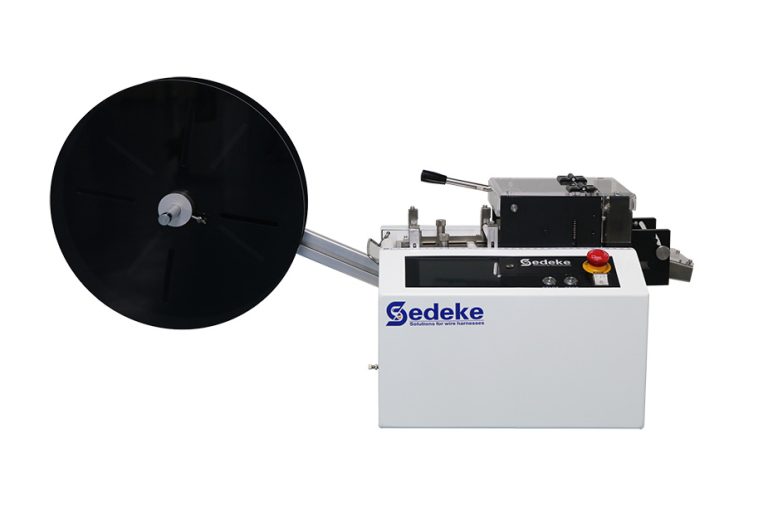

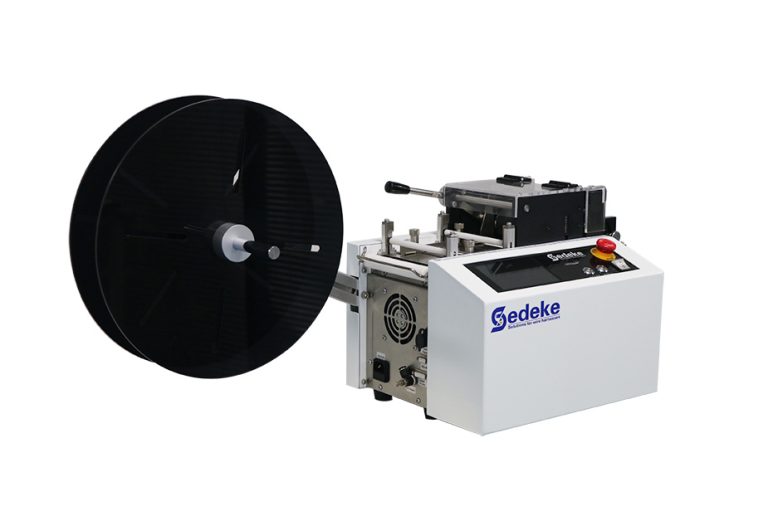

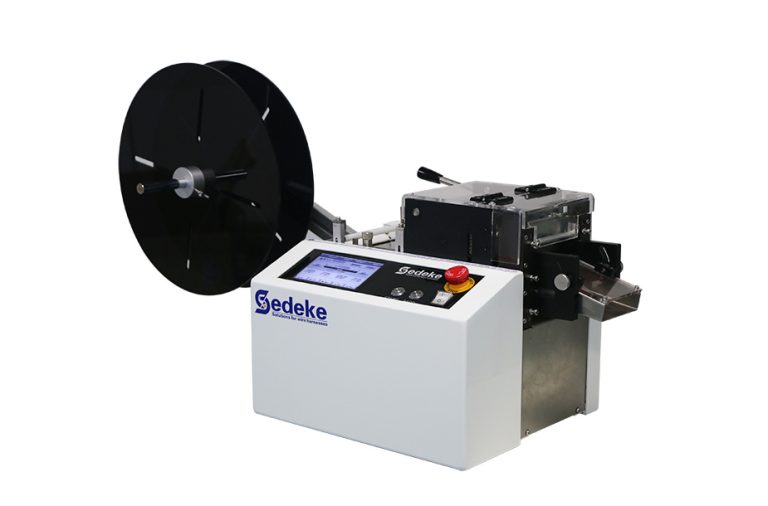

EC-6800 Automatic Cutting Machine

  • Upgraded touch screen operation, more convenient and easy to operate.
  • Equipped with air blowing device; prevent material from sticking to the blade or exit.
  • External interfaces for connecting Inkjet / Laser Printer; Connect PC and Prefeeder.
  • Due to the heavy duty,precision cutting unit, even very thin materials can be cut clean and square
  • Applicable to cut Heat shrink tubes, Hose, Rubber,Tin/Copper plate, Wires, Braided wire, Paper, Silicon tube, Film,Vinlyl, etc.
Send email Order now
Share
Product Series
Cut Strip Cut Strip Crimp Strip Crimp Cut Strip Crimp Heat Shrinking Tape Processing Quality Wind Peripherials Automotive Tools

DESCRIPTION

  • Upgraded touch screen operation, more convenient and easy to operate.
  • Equipped with air blowing device; prevent material from sticking to the blade or exit.
  • External interfaces for connecting Inkjet / Laser Printer; Connect PC and Prefeeder.
  • Due to the heavy duty,precision cutting unit, even very thin materials can be cut clean and square
  • Applicable to cut Heat shrink tubes, Hose, Rubber,Tin/Copper plate, Wires, Braided wire, Paper, Silicon tube, Film,Vinlyl, etc.

PARAMETER

ModelEC-6800
Display5 inch touch screen
Max. Cutting Width100mm
Max. Cutting Length1mm-99999mm
Cutter Opening Height22mm
SpeedL=100mm  100pcs/Min
Power Supply220VAC  50/60Hz
Power Consumption (Watt)350W
Weight (Net/Gross)32KG
Dimensions(W*D*H)520*320*320

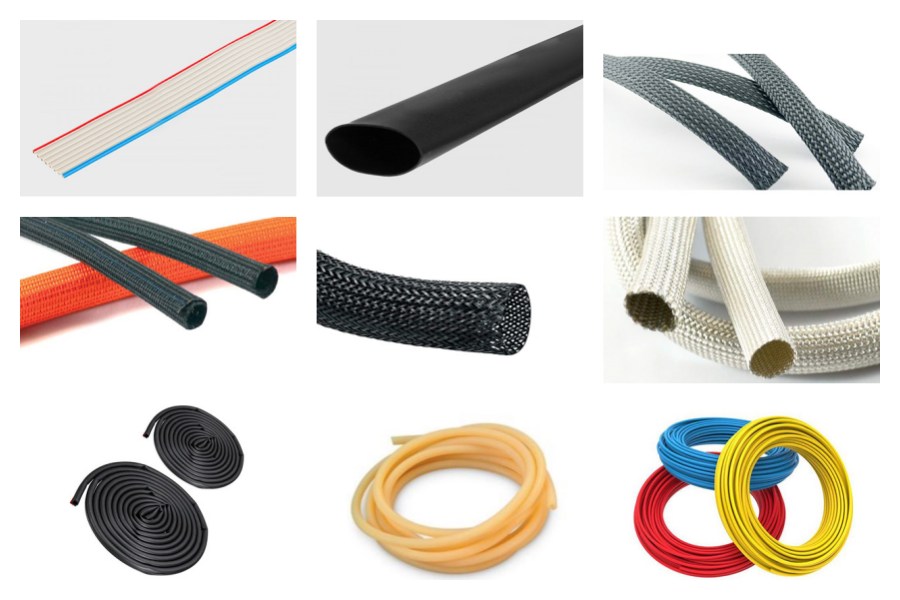

Cutting MaterialShrinktube,Hose,Rubber,Tin/Copper plate,wire,Braidedwire,Paper,Silicon tube,Film, Vinyl,etc

APPLICATION
