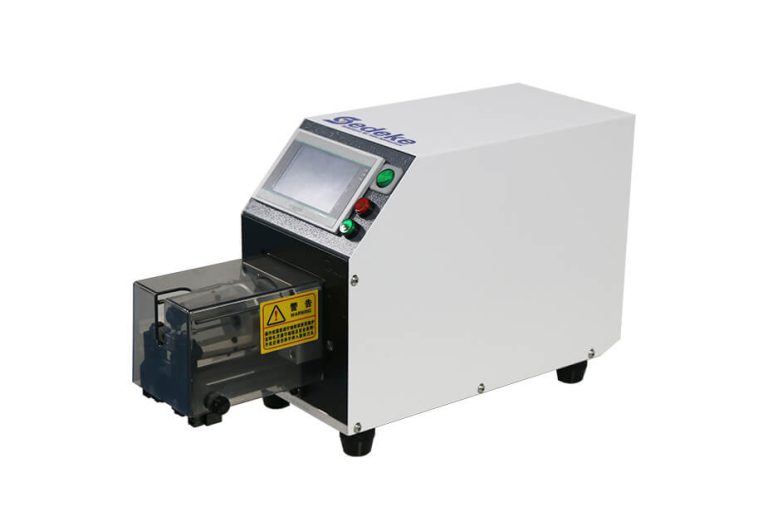

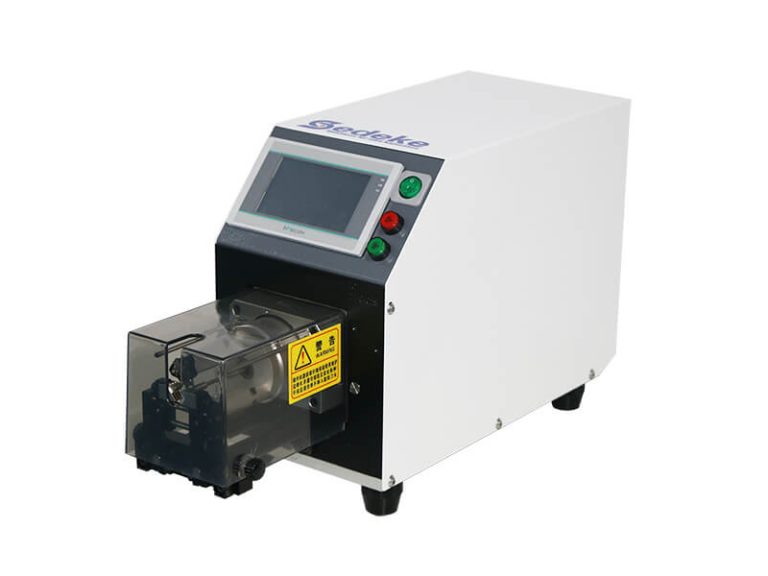

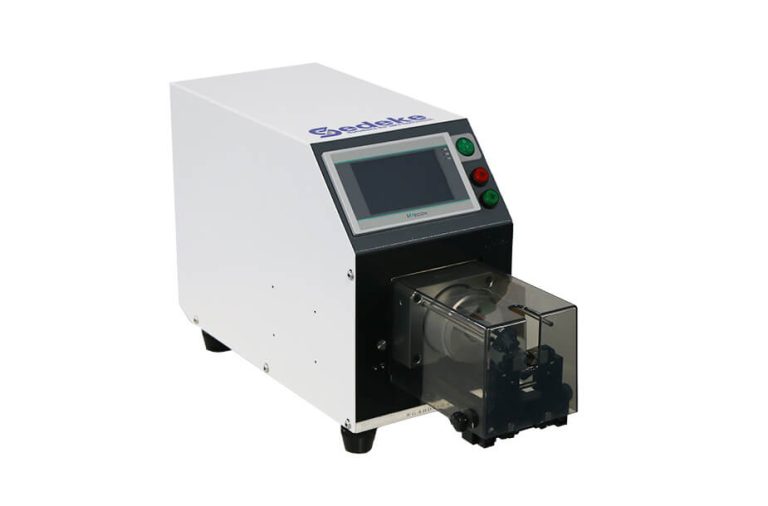

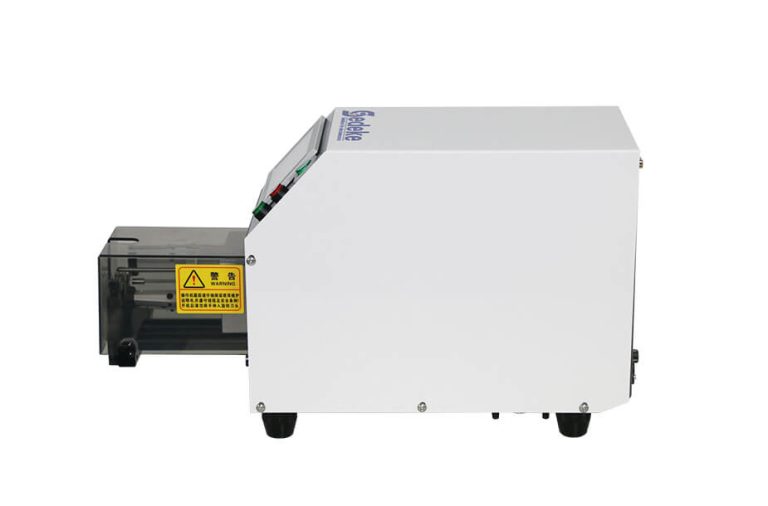

Coaxial Cable Wire Stripping Machine
CS-2486 coaxial cable wire stripping machine adopts menu dialogue control system can set each function easily and can save 100 kinds of processing data. There are 3 start up ways: button switch / trigger switch / pedal switch.

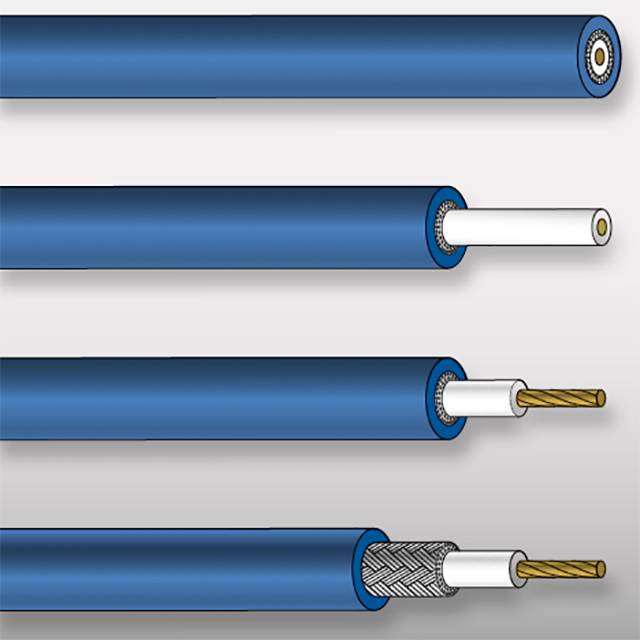

1. Can set up to nine layers of stripping and with twisting function; adjustable speed.
2. Blades adopt global top heat treatment technology to make blades more durable and stable.
3. With high accuracy and thickness tolerance less than 0.03mm.
4. The cutting edge adopts mirror treatment to ensure that there is no resistance in stripping and cutting, and the wire cuts are more smooth and beautiful. At the same time, it has the features of labor saving and low noise.
5. The unique three-side grinding technology of cutting edge makes the abrasion resistance increase by more than 30% compared with other ordinary blades.
| Overall Dimensions | 530*190*300mm |
| Weight | 19KG |
| Max. processing diameter | 7.5 mm |
| Min. processing diameter | 0.5mm |
| Max. stripping length | 48mm |
| Min. stripping length | 0.1mm |
| Max. stripping layers | 9 layer |
| Cutting depth unit | 0.01mm |
| Drive way | Motor / ball screw drive |
| Blade Material | imported tungsten steel |
| Rotary cutting blade | 2 pieces, Material: imported tungsten steel |
| Centering blade | 2 pieces, Material: imported high speed steel |
| Thread tension device | Automatic centering, motor drive, clamping force program control |
| Startup mode | Induction / Manual / Pedaling(Optional) |
| Program Storage | Max. 99 programs can be saved |
| Power | 220V 50/60HZ |
| Work environment | 0-50 degree, moderate dryness, vibration-free work surface |
| Production | At least 500-700 pcs/hr (depending on different wire length and operating procedures) |
