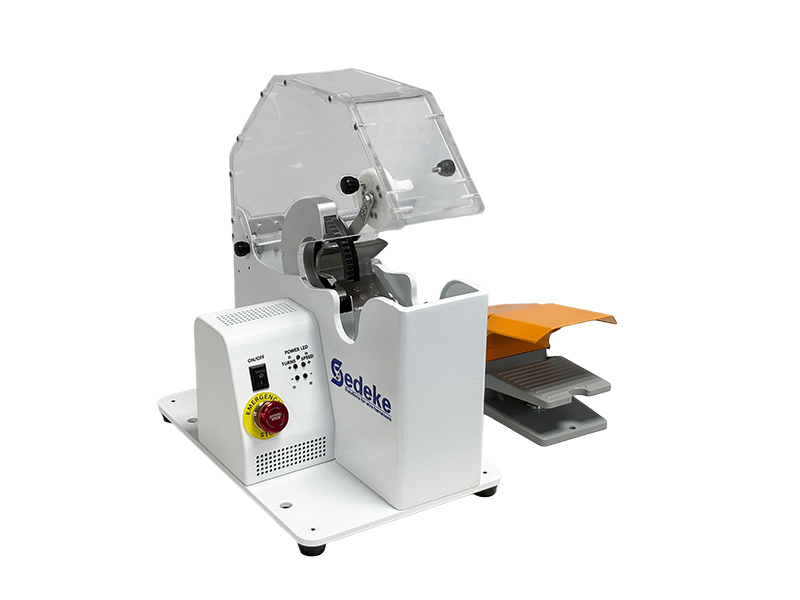

Maximize Efficiency: Desktop Automatic Tape Wrapping Machine
In today’s competitive wire harness processing industry, manual wrapping is often the bottleneck—leading to inconsistent quality, high labor costs, and worker fatigue. The Desktop Automatic Tape Wrapping Machine is the compact, high-performance solution designed to transform your production line.
Core Advantages: Small Footprint, Big Performance
1. Compact & Versatile Design
Weighing only 8.5kg with a footprint of just 200×300mm, this machine fits perfectly on any standard workbench. It is a "plug-and-play" solution that requires no complex installation, making it ideal for flexible production cells.
2. Precision & Speed (150–500 rpm)
With adjustable speeds up to 500 rpm, the machine ensures 100% consistency. Whether it is point wrapping or continuous spiral wrapping, the machine eliminates wrinkles and gaps, ensuring your wire harnesses meet the highest industrial standards every time.
3. Global Compatibility
Universal Power: Supports AC100-240V (50/60Hz) with three plug options available (CN, EU, US).
3-in-1 Tape Holder: Accommodates core diameters of 25mm (1in), 32mm (1.25in), and 38mm (1.5in).
Wide Tape Support: Handles tape outer diameters up to 110mm, reducing downtime for material changes.
Model Selection: Find Your Perfect Match
We offer two specialized models to cover your specific wire diameter requirements:
| Feature | Standard Model | Fine-Wire Model |
| Harness Diameter | 5–35mm (Rec: 8–30mm) | 3–25mm (Rec: 5–20mm) |
| Tape Width | 9–25mm | 9–20mm |
| Rated Power | 50W (DC24V) | 50W (DC24V) |
| Machine Weight | Approx. 8.5Kg (Incl. Packaging) | Approx. 8.5Kg (Incl. Packaging) |
Simple Operation: From Rookie to Pro in 5 Minutes
Lower your training costs significantly with our intuitive design:
Power On: Connect the adapter and flip the switch; the indicator light confirms readiness.
Load Tape: Place the roll on the 3-in-1 holder and thread it according to the visual guide.
Start Wrapping: Position the harness and activate via the foot pedal.
Maintenance: Built to Last
Our "low-maintenance" engineering ensures your investment continues to pay off for years:
Weekly Lubrication: Apply a few drops of grease (butter) to the large turntable gears once a week for smooth, quiet operation.
Power Discipline: Unplug the machine when not in use. Avoid using the "Emergency Stop" as a routine power switch to protect the internal circuitry.
Factory Support: To maintain your warranty and ensure precision, unauthorized disassembly is prohibited. Our professional after-sales team is always ready to assist.
Why Invest in the machine?
The Math is Simple: One machine can replace the output of 2–3 manual workers while using less tape due to precise overlap control. Most clients see a full Return on Investment within 3 to 6 months.
Stop paying for inconsistency. Upgrade to automation today.
Ready to Boost Your Production?
Watch the Demo: See the machine in action with various wire types.
Free Sample Testing: Send us your wire harness samples, and we will provide a free wrapping test video!
Contact Us: Reach out today for a personalized quote and technical consultation.
